DIN 2527 Flanges

The DIN 2527 Flanges with the specifications of this standard could be used at a working pressure of up to 16 bars and a maximum temperature of 120°C. It should be considered that the material's or the din 2527 pn6 flange's yield point will decrease at higher temperatures between 120°C and 300°C.

Table of Content

Din 2527 Blind Flanges Manufacturer In India, Check Din 2527 Flange Dimensions Pdf

The standard is identified as DIN 2527 in the din 2527 flange dimensions pdf. The materials indicated in the standard, in addition to the din 2527 pn40 flange specifications, are both carbon steel and stainless steel. The blind flanges specified in DIN 2527 are made from these materials. Either forged or cast steel grades are used to make the flange din 2527 pn16.

The size chart for the ASME B16.5 standard flange, which ranges in size from 12 inch (15 NB) to 48 inch (1200 NB) or DN10DN5000, is also included in the din 2527 pn10 flange dimensions. The surface treatment of the flange din 2527 pn10 is significant. The flange din 2527 pn16 is often surface-treated by either treating the flange with zinc using various techniques. For instance, using either cold or hot dip galvanization, a thick layer of zinc can be applied to the blind

View Din 2527 Pn10 Flange Dimensions, Check Flange Din 2527 Pn16 Price List

The din 2527 pn16 blind flange surface can be electroplated to add a thin zinc covering. The din 2527 pn10 flange may also be coated with Oil Black Paint, Anti-rust Paint, or Yellow Transparent. The din 2527 pn10 flange's work service life is extended and its corrosion resistance is improved by coating or surface treating it.

Most manufacturers or producers of DIN 2527 Pipe Flanges are able to provide Test Certificates, EN 10204/3.1B, 100% Radiography Test Report, Raw Materials Certificate, Third Party Inspection Report, etc.



DIN 2527 Flange Specifications
Specifications DIN 2527 Flanges
ASME B16.5 DIN 2527 Flange size range 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
DIN 2527 Flanges Standards B16.47 Series A & B, ANSI/ASME B16.5, BS4504, B16.48, EN-1092, BS 10, DIN, ANSI Flanges, BS Flanges, ASME Flanges, EN Flanges, DIN Flanges, GOST Flanges.
DIN 2527 Flange Standard DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
DIN 2527 Flange Standard JIS 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
DIN 2527 Flange Standard UNI 6Bar 10Bar 16Bar 25Bar 40Bar
DIN 2527 Flange Standard EN 6Bar 10Bar 16Bar 25Bar 40Bar
Main Types Threaded / Forged / Plate /Screwed
Flange supporting material Ring Joint, Gasket, Flange Bolts
DIN 2527 Pipe Flanges Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Most common types of DIN 2527 Flanges
  • Slip-On Ring Flange (SORF), DIN 2527
  • Weld Neck Ring Flange (WNRF), DIN 2527
  • Threaded Ring Flange, DIN 2527
  • Socket Weld Ring Flange (SWRF), DIN 2527
  • Blind Ring Flange (BLRF), DIN 2527
  • Ring Type Joint Flange (RTJF), DIN 2527
  • Lap Joint Ring Flange (LJRF), DIN 2527
Production technique
  • Forged, Heat treated and machined
Connect Type/ Flange Face Type Ring Type Joint (RTJ), Raised Face (RF),Large Male-Female (LMF), Flat Face (FF),Small Male-Female (SMF), Lap-Joint Face (LJF), Large Tongue & Groove, Small Tongue, Groove
Special design

As per your drawing

AS, ANSI, BS, DIN and JIS
15 NB (1/2") to 200 NB (8")
Equal and Reducing Configurations

DIN 2527 Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange
Test Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc
Origin Indian / West Europe / Japan / USA / Korean
Specialized manufacturer of
  • DIN 2566 pn16
  • Rtj Flange
  • PN16 Flange
  • DIN 2566 pn10
  • DIN 2566 en 1092 1
  • DIN 2527 Blind Flanges
  • DIN 2527 Large Diameter Flange
  • DIN 2527 Table Flanges
  • DIN 2527 Sorf Flange
  • DIN 2527 Socketweld Flanges
  • DIN 2527 Threaded Flanges
  • DIN 2527 Weld Neck Flanges
  • DIN 2527 Slip-On Flanges
  • DIN 2527 Loose Flanges
  • DIN 2527 AS 4087 Water Flanges
  • DIN 2527 Lap Joint Flanges
  • DIN 2527 Plate Flanges
  • DIN 2527 Orifice Flanges
DIN 2527 Flanges Standard

ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange

  • ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
  • AS 2129: Table D; Table E; Table H
  • B.S: BS4504 , BS3293, BS1560, BS10
  • ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
  • ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
  • German (DIN)
  • American standard (ANSI)
  • Any other specilised flanges
  • British standard (BS)
  • The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203;UNI2276
  • DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638
Key markets and industries for DIN 2527 Flanges
  • Nuclear power (mostly seamless).
  • Heavy oil refineries.
  • Bitumen upgraders.
  • Petrochemicals and acids.
Export to Dubai, Iran, Singapore, Canada, Korea, Oman, Indonesia, Peru, Ukraine, Brazil, India, Thailand, Egypt, Ireland, Spain, USA,Saudi Arabia etc
DIN 2527 Flanges Application
  • To Connect Pipe & Tubes in Chemical, Petroleum, Power, Gas, Construction,Shipbuilding, Metallurgy etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175



Buy Din 2527 Pn6 Blind Flange At Factory Price In India, See Din 2527 Pn10 Flange Dimensions

DIN 2527 PN40 Flange Dimensions

DIN Blind Flanges / DIN 2527 PN40 Flanges

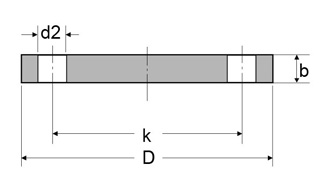

DIN 2527 PN40 Flange Dimensions
Nominal Pipe Size
Flange Dimension
Screw Parameter
Approx. Flange Weight
Flanges Dia
Thk of Flange
Dia of Bolt Circle
No. of holes
Dia of Bolt Holes
DIN
D
b
k
X
d2
KG/PCS
10
90
16
60
4
14
0.72
15
95
16
65
4
14
0.81
20
105
18
75
4
14
1.14
25
115
18
85
4
14
1.38
32
140
18
100
4
18
2.03
40
150
18
110
4
18
2.35
50
165
20
125
4
18
3.2
65
185
22
145
8
18
4.29
80
200
24
160
8
18
5.54
100
235
24
190
8
22
7.6
125
270
26
220
8
26
10.82
150
300
28
250
8
26
14.6
175
350
32
295
12
30
22.04
200
375
34
320
12
30
27.21
250
450
38
385
12
33
44.38
300
515
42
450
16
33
64.17
350
580
46
510
16
36
89.52
400
660
50
585
16
39
126.76
500
755
56
670
20
42
184.63
600
890
62
795
20
48
285.17
700
995
64
900
24
48
368.83
800
1140
70
1030
24
56
528.39
900
1250
76
1140
28
56
690.99
Blind Flange Din 2527 Pn16, We maintain Stock of Flange Din 2527 Pn40,
DIN 2527 PN25 Flange Dimensions

DIN 2527 PN25 Blind Flanges

DIN 2527 PN25 Flange Dimensions

Flange Nominal Diameter
Pressure Rating (PN)

**Nominal BSP Pipe Size
PN6
PN10
PN16
PN25
PN40

DN 10
75
90
90
90
90
O.D.
3/8"
50
60
60
60
60
PCD (bolt circle)

4 x 11
4 x 14
4 x 14
4 x 14
4 x 14
# of holes x diam. of holes
DN 15
80
95
95
95
95
O.D.
1/2"
55
65
65
65
65
PCD (bolt circle)

4 x 11
4 x 14
4 x 14
4 x 14
4 x 14
# of holes x diam. of holes
DN 20
90
105
105
105
105
O.D.
3/4"
65
75
75
75
75
PCD (bolt circle)

4 x 11
4 x 14
4 x 14
4 x 14
4 x 14
# of holes x diam. of holes
DN 25
100
115
115
115
115
O.D.
1"
75
85
85
85
85
PCD (bolt circle)

4 x 11
4 x 14
4 x 14
4 x 14
4 x 14
# of holes x diam. of holes
DN 32
120
140
140
140
140
O.D.
1 1/4"
90
100
100
100
100
PCD (bolt circle)

4 x 14
4 x 18
4 x 18
4 x 18
4 x 18
# of holes x diam. of holes
DN 40
130
150
150
150
150
O.D.
1 1/2"
100
110
110
110
110
PCD (bolt circle)

4 x 14
4 x 18
4 x 18
4 x 18
4 x 18
# of holes x diam. of holes
DN 50
140
165
165
165
165
O.D.
2"
110
125
125
125
125
PCD (bolt circle)

4 x 14
4 x 18
4 x 18
4 x 18
4 x 18
# of holes x diam. of holes
DN 65
160
185
185
185
185
O.D.
2 1/2"
130
145
145
145
145
PCD (bolt circle)

4 x 14
4 x 18
4 x 18
8 x 18
8 x 18
# of holes x diam. of holes
DN 80
190
200
200
200
200
O.D.
3"
150
160
160
160
160
PCD (bolt circle)

4 x 18
8 x 18
8 x 18
8 x 18
8 x 18
# of holes x diam. of holes
DN 100
210
220
220
235
235
O.D.
4"
170
180
180
190
190
PCD (bolt circle)

4 x 18
8 x 18
8 x 18
8 x 22
8 x 22
# of holes x diam. of holes
DN 125
240
250
250
270
270
O.D.
5"
200
210
210
220
220
PCD (bolt circle)

8 x 18
8 x 18
8 x 18
8 x 26
8 x 26
# of holes x diam. of holes
DN 150
265
285
285
300
300
O.D.
6"
225
240
240
250
250
PCD (bolt circle)

8 x 18
8 x 22
8 x 22
8 x 26
8 x 26
# of holes x diam. of holes
DN 175

315
315
330
350
O.D.
7"

270
270
280
295
PCD (bolt circle)


8 x 22
8 x 22
12 x 26
12 x 30
# of holes x diam. of holes
DN 200
320
340
340
360
375
O.D.
8"
280
295
295
310
320
PCD (bolt circle)

8 x 18
8 x 22
12 x 22
12 x 26
12 x 30
# of holes x diam. of holes
DN 250
375
395
405
425
450
O.D.
10"
335
350
355
370
385
PCD (bolt circle)

12 x 18
12 x 22
12 x 26
12 x 30
12 x 33
# of holes x diam. of holes
DN 300
440
445
460
485
515
O.D.
12"
395
400
410
430
450
PCD (bolt circle)

12 x 22
12 x 22
12 x 26
16 x 30
16 x 33
# of holes x diam. of holes
DN 350
490
505
520
555
580
O.D.
14"
445
460
470
490
510
PCD (bolt circle)

12 x 22
16 x 22
16 x 26
16 x 33
16 x 36
# of holes x diam. of holes
DN 400
540
565
580
620
660
O.D.
16"
495
515
525
550
585
PCD (bolt circle)

16 x 22
16 x 26
16 x 30
16 x 36
16 x 39
# of holes x diam. of holes
DN 500
645
670
715
730
755
O.D.
20"
600
620
650
660
670
PCD (bolt circle)

20 x 22
20 x 26
20 x 33
20 x 36
20 x 42
# of holes x diam. of holes
DN 600
755
780
840
845

O.D.
24"
705
725
770
770

PCD (bolt circle)

20 x 24
20 x 27
20 x 33
20 x 36

# of holes x diam. of holes



DIN 2527 PN10 Flange Dimensions

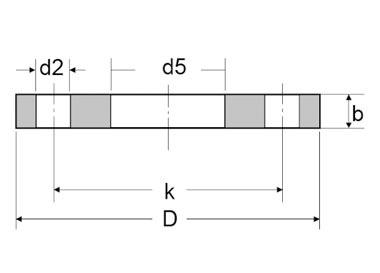

DIN 2527 PN10 Flange Dimensions
Rated
Diameter
Flange
Screws
Weight of a flange
(7,85 Kg/dm3)
D
b
k
Number
Thread
d2
Shape B
Kg
15
95
14
65
4
M 12
14
0,72
20
105
16
75
1,01
25
115
16
85
1,23
32
140
16
100
M 16
18
1,8
40
150
16
110
2,09
50
165
18
125
2,88
65
185
18
145
3,66
80
200
20
160
4,77
100
220
20
180
8
5,65
125
250
22
210
8,42
150
285
22
240
M 20
22
10,4
200
340
24
295
16,5
250
395
26
350
12
24
300
445
26
400
30,9
350
505
26
460
16
40,6
400
565
26
515
M 24
26
49,4
500
670
28
620
20
75



DIN 2527 PN16 Flange Dimensions

DIN Threaded Flanges / DIN 2527 PN16 Flanges

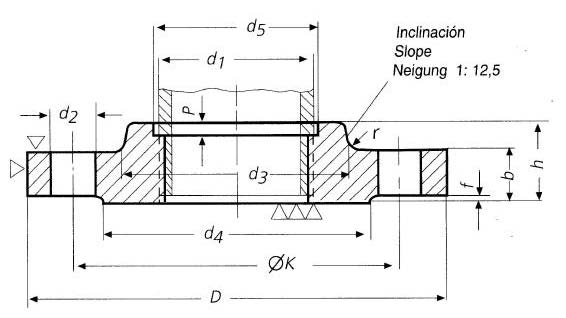

DIN 2527 PN16 Flange Dimensions
Rated
Diameter
d1
Flange
Neck
Raised face
Screws
Weight of a flange
(7,85 Kg/dm3)
Thread
D
b
k
h1
d3
d4
f
Number
Thread
d2
Kg
15
21,3
R 1/2
95
14
65
20
35
45
2
4
M 12
14
0,613
20
26,9
R 3/4
105
16
75
24
45
58
2
4
M 12
14
0,91
25
33,7
R 1
115
16
85
24
52
68
2
4
M 12
14
1,1
32
42,4
R 1 1/4
140
16
100
26
60
78
2
4
M 16
18
1,6
40
48,3
R 1 1/2
150
16
110
26
70
88
3
4
M 16
18
1,78
50
60,3
R 2
165
18
125
28
85
102
3
4
M 16
18
2,43
65
76,1
R 2 1/2
185
18
145
32
105
122
3
4
M 16
18
3,18
80
88,9
R 3
200
20
160
34
118
138
3
8
M 16
18
4,12
100
114,3
R 4
220
20
180
38
140
158
3
8
M 16
18
4,47
125
139,7
R 5
250
22
210
40
168
188
3
8
M 16
18
6,13
150
165,1
R 6
285
22
240
44
195
212
3
8
M 20
22
7,92



flange
