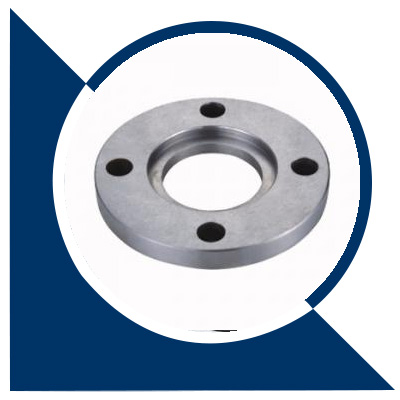

Stainless Steel Socket Weld Flange Supplier, Stockists

With the aid of a single fillet weld, which is completed on the flange's outside, Socket Weld Flange Din En 1092-1 is connected to a pipe. Even though the slip-on flange type needs two welds, the socket weld flange is different. In accordance with ASME B31.1, the pipe must first be inserted into the flange's socket and guided there until it reaches the bottom of the flange in order to execute a SW flange connection using a socket weld flange. Then it is raised by 1.6 mm, and last it is welded.

Table of Content

Price List of Socket Weld Flange
What is Socket Weld Flange ?
Specification of Socket Weld Flange
Dimensions of Pn16 Socket Weld Flange
JIS Socket Weld Flange Dimensions
Pressure Ratings of Socket Weld Flange
Socket Weld Flange Dimensions
Types of Socket Weld Flange
Socket Weld Flange Size Chart
Weight Chart of Socket Weld Flange
Socket Weld Flange Weight Calculator(Socket Weld Flange Thickness Calculation)
ASTM Specification of Socket Weld Flange
Socket Weld Flange Material & Grades
Socket Weld Flange Uses

See Raised Face Socket Weld Flange Dimensions in Carbon Steel Socket Weld Flange, Pn16 and A105.

The manufacturer of stainless steel socket weld flanges in India is required to leave this space so that the pipe can be positioned correctly inside the flange socket. After the weld has solidified, this is done. Small-size, high-pressure pipe systems that do not transmit extremely corrosive fluid media typically employ Socket Weld Flange Awwa C207 Class D. This is due to the fact that these API 6A SWRF Flange types are susceptible to corrosion when there is a space between the pipe's end and the socket's shoulder.

Raised Face Socket Weld Flange in Pn16 has a similar static strength as slip-on flanges. However, because they have a single fillet weld instead of a double one, they have a substantially higher fatigue strength. The family of high pressure fittings known as socket weld flange fittings is utilised in a variety of industrial processes. These flanges are utilised for steam lines with a 300 to 600 PSI pressure range as well as lines that transport toxic, flammable, or expensive materials where any leakage is unacceptable. The Copper SWRF Flange, which comes in a similar size range, is only used in conjunction with ASME Pipe.

Look at the most recent API 6A SWRF Flange price list in India, the socket weld flange Awwa C207 class D weight chart, and copper SWRF flange suppliers in Mumbai.

Carbon Steel Socket Weld Flange

Stainless Steel Socket Weld Flange Manufacturers

Alloy Steel Socket Weld Flange

Check the Sizes of the Socket Weld Flange according to DIN 1092-1. Also look at Asme B16.5 Class 150, Class 300, and Class 600 Socket Weld Flange prices.

When installing permanent pipework, socket weld flange Din En 1092-1 is utilised because it has strong flow characteristics. The Socket Weld Flange Asme B16.5 Class 150 is created in line with ASME B16.5 and numerous ASTM standards. Dimensions, tolerances, pressure and temperature ratings, marking requirements, and material specifications for forged carbon and alloy steel grades are just a few of the parameters covered by the B16.11 standard. The suitable material forms must abide with ASTM A105, A182, or A350's fittings melting procedures, chemical specifications, and mechanical property standards. There are three pressure ratings for the A105 Carbon Steel Socket Weld Flange, including Class 3000, 6000, and 9000.

Price List of Socket Weld Flange

Socket Weld Flange type	Socket Weld Flange Price in India	Socket Weld Flange Price in USD	Socket Weld Flange Price in UAE Dirham
Stainless Steel Socket Weld Flange	INR 2856.03 / Kg	USD $ 31.30 /Kg	AED 141.71 UAE Dirham
Carbon steel Socket Weld Flange	INR 2720.34 / Kg	USD $ 29.30 /Kg	AED 134.36 UAE Dirham
Alloy steel Socket Weld Flange	INR 2423.39 / Kg	USD $ 25.09 /Kg	AED 118.89 UAE Dirham
ANSI b16 5 Socket Weld Flange	INR 2332.55 / Kg	USD $ 23.78 /Kg	AED 114.08 UAE Dirham
ASME b16.47 Socket Weld Flange	INR 2125.89 / Kg	USD $ 20.80 /Kg	AED 100.14 UAE Dirham

What is Socket Weld Flange ?

When attaching SS Socket-weld pipe flanges, the pipe is inserted into the socket end and the top is filled with fillet welding. Smaller diameters of high-pressure pipes often employ socket weld flanges. These enable a smooth bore and improved fluid or gas flow inside the pipe.

Specification of Socket Weld Flange

Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Socket Weld Flange Standards	ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
ASME B16.5 Socket Weld Flange Size Chart	1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Socket Weld Flange Pressure Calculation in DIN	6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 Socket Weld Flange
Socket Weld Flange Pressure Rating ANSI	Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Socket Weld Flange
UNI	6Bar 10Bar 16Bar 25Bar 40Bar Socket Weld Flange
JIS	5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K Socket Weld Flange
Coating	Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized Socket Weld Flange
EN	6Bar 10Bar 16Bar 25Bar 40Bar Socket Weld Flange
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Most common types of Socket Weld Flange	Forged / Threaded / Screwed / Plate
Connect Type/ Flange Face Type	Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
Production technique	Forged, Heat treated and machined
Test	Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Special design	As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2") to 200 NB (8") Equal and Reducing Configurations
Origin	Indian / West Europe / Japan / USA / Korean
Equipment	Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Socket Weld Flange Uses & application	Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids.
Manufacturer of	ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. Socket Weld Flange: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 Socket Weld Flange The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276
Export to	Saudi Arabia, Peru, Egypt, Indonesia, Brazil, Spain, USA, Canada, Ukraine, Singapore, Thailand, Oman, Ireland, Korea, Iran, India, Dubai

Dimensions of Pn16 Socket Weld Flange

DIN 2527 PN16 Socket Weld Flange
Rated Diameter	Flange			Screws			Weight (7,85 Kg/dm3)
	D	b	k	Number	Thread	d2	Shape B
	D	b	k	Number	Thread	d2	Kg
15	95	14	65	4	M 12	14	0,72
20	105	16	75				1,01
25	115	16	85				1,23
32	140	16	100		M 16	18	1,8
40	150	16	110				2,09
50	165	18	125				2,88
65	185	18	145				3,66
80	200	20	160	8			4,77
100	220	20	180				5,65
125	250	22	210				8,42
150	285	22	240		M 20	22	10,4
200	340	24	295	12	M 20	22	16,1
250	405	26	355		M 24	26	24,9
300	460	28	410				35,1
350	520	30	470	16			47,8
400	580	32	525	16	M 27	30	63,5
500	715	36	650	20	M 30	33	102

JIS Socket Weld Flange Dimensions

JIS 5K Socket Weld Flange Dimensions

Pipe		Pipe	Bo		D		t		T		G		f	r	H		X		C		Holes	Bolt Dia.
inch	mm	Pipe	Bo		D		t		T		G		f	r	H		X		C		Holes	Bolt Dia.
3/8	10	17.3	17.8	+0.5 -0	75	+1.0 -0	9	+1.0 -0	–	±1.0	42	±0.8	1	–	–	+2.0 -0	–	+2.0 -0	55	±0.5	4	12
1/2	15	21.7	22.2		80		9		–		48		1	–	–		–		60		4	12
3/4	20	27.2	27.7		85		10		–		52		1	–	–		–		65		4	12
1	25	34.0	34.5		95		10		–		62		1	–	–		–		75		4	12
1-1/4	32	42.7	43.2		115		12		–		72		2	–	–		–		90		4	15
1-1/2	40	48.6	49.1		120		12		–		78		2	–	–		–		95		4	15
2	50	60.5	61.1		130		14		–		88		2	–	–		–		105		4	15
2-1/2	65	76.3	77.1		155		14		–		112		2	–	–		–		130		4	15
3	80	89.1	90.0		180		14		–		125		2	–	–		–		145		4	19
3-1/2	90	101.6	102.6	+1.0 -0	190		14		–		135		2	–	–		–		155		4	19
4	100	114.3	115.4	+1.0 -0	200		16		–		145		2	–	–		–		165		8	19
5	125	139.8	141.2		235		16		–		180		2	–	–		–		200		8	19
6	150	165.2	166.6		265		18		–		210		2	–	–		–		230		8	19
7	175	190.7	192.1		300		18		–		235	±0.9	2	–	–		–		260	±0.6	8	23
8	200	216.3	218.0		320	+1.5 -0	20		–		255		2	–	–		–		280		8	23
9	225	241.8	243.7		345		20		–		280		2	–	–		–		305		12	23
10	250	267.4	269.5		385		22	+1.5 -0	32		320		2	5	286		290		345		12	23
12	300	318.5	321.0		430		22		34		365		3	5	338		342		390		12	23
14	350	355.6	358.1		480		24		36		405		3	5	378		382		435		12	25
16	400	406.4	409.0	+1.5 -0	540		24		36		465		3	5	432		436		495		16	25
18	450	457.2	460.0		605	+2.0 -0	24		40		525		3	5	495		500		555	±0.8	16	25
20	500	508.0	511.0		655		24		40		575		3	5	546		552		605		20	25
22	550	558.8	562.0		720		26		42		630		3	5	597		603		665		20	27
24	600	609.6	613.0	+2.0 -0	770		26		44		680	±1.0	3	5	648		654	+2.5 -0	715		20	27
26	650	660.4	664.0		825		26		48		735		3	5	702	+2.5 -0	708		770		24	27
28	700	711.2	715.0		875		26		48		785		3	5	751	+2.5 -0	758		820		24	27
30	750	762.0	766.0		945		28		52	±1.5	840		3	5	802		810		880		24	33
32	800	812.8	817.0	+2.5 -0	995		28		52		890		3	5	854	+3.0 -0	862	+3.0 -0	930		24	33
34	850	863.6	868.0		1045	+2.5 -0	28		54		940		3	5	904		912		980	±1.0	24	33
36	900	914.4	919.0		1095		30		56		990		3	5	956		964		1030		24	33
40	1000	1016.0	1021.0	+3.0 -0	1195		32		60		1090	±1.2	3	5	1058	+3.5 -0	1066	+3.5 -0	1130		28	33
44	1100	1117.6	1123.0		1305		32		–		1200		3	–	–		–		1240		28	33
48	1200	1219.2	1224.0		1420		34		–		1305		3	–	–		–		1350		32	33
54	1350	1371.6	1377.0		1575	+3.0 -0	34		–		1460		3	–	–		–		1505	±1.5	32	33
60	1500	1524.0	1529.0		1730	+3.0 -0	36		–		1615		3	–	–		–		1660	±1.5	36	33

JIS 10K Socket Weld Flange Dimensions

Pipe		Pipe	Bo		D		t		T		G		f	r	H		X		C		Holes	Bolt Dia.
inch	mm	Pipe	Bo		D		t		T		G		f	r	H		X		C		Holes	Bolt Dia.
3/8	10	17.3	17.8	+0.5 -0	90	+1.0 -0	12	+1.0 -0	–	±1.0	48	±0.8	1	–	–	+1.5 -0	–	+1.5 -0	65	±0.5	4	15
1/2	15	21.7	22.2		95		12		–		52		1	–	–		–		70		4	15
3/4	20	27.2	27.7		100		14		–		58		1	–	–		–		75		4	15
1	25	34.0	34.5		125		14		–		70		1	–	–		–		90		4	19
1-1/4	32	42.7	43.2		135		16		–		80		2	–	–		–		100		4	19
1-1/2	40	48.6	49.1		140		16		–		85		2	–	–		–		105		4	19
2	50	60.5	61.1		155		16		–		100		2	–	–		–		120		4	19
2-1/2	65	76.3	77.1		175		18		–		120		2	–	–		–		140		4	19
3	80	89.1	90.0		185		18		–		130		2	–	–		–		150		8	19
3-1/2	90	101.6	102.6	+1.0 -0	195		18		–		140		2	–	–		–		160		8	19
4	100	114.3	115.4	+1.0 -0	210		18		–		155		2	–	–		–		175		8	19
5	125	139.8	141.2		250		20		–		185		2	–	–		–		210		8	23
6	150	165.2	166.6		280		22	+1.5 -0	–		215		2	–	–		–		240		8	23
7	175	190.7	192.1		305	+1.5 -0	22		32		240	±0.9	2	6	208		212		265	±0.6	12	23
8	200	216.3	218.0		330		22		32		265		2	6	234		238		290		12	23
9	225	241.8	243.7		350		22		34		285		2	6	260		264		310		12	23
10	250	267.4	269.5		400		24		36		325		2	6	288		292		355		12	25
12	300	318.5	321.0		445		24		38		370		3	6	340		346		400		16	25
14	350	355.6	358.1		490		26		42		415		3	6	380		386		445		16	25
16	400	406.4	409.0	+1.5 -0	560		28		44		475		3	6	436		442		510		16	27
18	450	457.2	460.0		620	+2.0 -0	30		48		530		3	6	496	+2.0 -0	502	+2.0 -0	565	±0.8	20	27
20	500	508.0	511.0		675		30		48		585		3	6	548		554		620		20	27
22	550	558.8	562.0		745		32		52	±1.5	640		3	6	604		610		680		20	33
24	600	609.6	613.0	+2.0 -0	795		32		52		690	±1.0	3	6	656	+2.5 -0	662	+2.5 -0	730		24	33
26	650	660.4	664.0		845		34		56		740		3	6	706		712		780		24	33
28	700	711.2	715.0		905		34		58		800		3	6	762		770		840		24	33
30	750	762.0	766.0		970		36		62		855		3	6	816		824		900		24	33
32	800	812.8	817.0	+2.5 -0	1020	+2.5 -0	36		64		905		3	6	868	+3.0 -0	876	+3.0 -0	950		28	33
34	850	863.6	868.0		1070		36		66		955		3	6	920		928		1000	±1.0	28	33
36	900	914.4	919.0		1120		38		70		1005	±1.2	3	6	971		979		1050	±1.0	28	33
40	1000	1016.0	1021.0	+3.0 -0	1235		40		74		1110		3	6	1073	+3.5 -0	1081	+3.5 -0	1160		28	39
44	1100	1117.6	1123.0		1345		42		78		1220		3	8	1175		1185		1270		28	39
48	1200	1219.2	1224.0		1465		44		82		1325		3	8	1278		1290		1380	±1.5	32	39
54	1350	1371.6	1377.0		1630	+3.0 -0	48		88		1480		3	8	1432		1450		1540		36	45
60	1500	1524.0	1529.0		1795	+3.0 -0	50		90		1635		3	8	1585		1600		1700		40	45

JIS 16K Socket Weld Flange Dimensions

Pipe		Pipe	Bo		D		t		T		G		f	r	H		X		C		Holes	Bolt Dia.
inch	mm	Pipe	Bo		D		t		T		G		f	r	H		X		C		Holes	Bolt Dia.
3/8	10	17.3	17.8	+0.5 -0	90	+1.0 -0	12	+1.0	16	±1.0	48	±0.8	1	4	26	+1.0 -0	28	+1.0 -0	65	±0.5	4	15
1/2	15	21.7	22.2		95		12		16		52		1	4	30		32		70		4	15
3/4	20	27.2	27.7		100		14		20		58		1	4	38		42		75		4	15
1	25	34.0	34.5		125		14		20		70		1	4	46		50		90		4	19
1-1/4	32	42.7	43.2		135		16		22		80		2	5	56		60		100		4	19
1-1/2	40	48.6	49.1		140		16		24		85		2	5	62		66		105		4	19
2	50	60.5	61.1		155		16		24		100		2	5	76		80		120		8	19
2-1/2	65	76.3	77.1		175		18		26		120		2	5	94		98		140		8	19
3	80	89.1	90.0		200		20		28		135		2	6	108		112		160		8	23
3-1/2	90	101.6	102.6	+1.0 -0	210		20		30		145		2	6	120		124		170		8	23
4	100	114.3	115.4		225		22	+1.5 -0	34		160		2	6	134		138		185		8	23
5	125	139.8	141.2		270		22		34		195		2	6	164		170		225		8	25
6	150	165.2	166.6		305	+1.5 -0	24		38		230	±0.9	2	6	196		202		260	±0.6	12	25
7	175	190.7	192.1		325		26		40		250		2	6	216		222	+1.5 -0	280		12	25
8	200	216.3	218.0		350		26		40		275		2	6	244	+1.5 -0	252		305		12	25
9	225	241.8	243.7		385		26		40		325		2	6	266		272		335		12	27
10	250	267.4	269.5		430		28		44		345		2	6	304		312		380		12	27
12	300	318.5	321.0		480		30		48		395		3	8	354		364		430		16	27
14	350	355.6	358.1		540		34		52	±1.5	440		3	8	398		408		480		16	33
16	400	406.4	409.0	+1.5 -0	605	+2.0 -0	38		60		495		3	10	446		456	+2.0 -0	540		16	33
18	450	457.2	460.0		675		40		64		560		3	10	504	+2.0 -0	514		605	±0.8	20	33
20	500	508.0	511.0		730		42		68		615		3	10	558		568		660		20	33
22	550	558.8	562.0		795		44		70		670	±1.0	3	10	612		622		720		20	39
24	600	609.6	613.0	+2.0 -0	845		46		74		720		3	10	666	+2.5 -0	676	+2.5 -0	770		24	39
26	650	660.4	664.0		895		48		77		770		5	10	704		726		820		24	39
28	700	711.2	715.0		960		50		80		820		5	10	754		776		875		24	42
30	750	762.0	766.0		1020	+2.5 -0	52	+2.0 -0	83		880		5	10	806		832		935		24	42
32	800	812.8	817.0	+2.5 -0	1085		54		86		930		5	10	865	+3.0 -0	885	+3.0 -0	990	±1.0	24	48
34	850	863.6	868.0		1135		56		89		980		5	10	916		936		1040		24	48
36	900	914.4	919.0		1185		58		93		1030	±1.2	5	10	968		986		1090		28	48
40	1000	1016.0	1021.0	+3.0 -0	1320		62		99		1140		5	12	1070	+3.5 -0	1098	+3.5 -0	1210		28	56
44	1100	1117.6	1123.0		1420		66		105	±2.0	1240		5	12	1180		1200		1310		32	56
48	1200	1219.2	1225.0		1530	+3.0 -0	70		112		1350		5	12	1282		1302		1420	±1.5	32	56
52	1300	1320.8	1326.0		1645		74		–		1450		5	–	–		–		1530		32	62
54	1350	1371.6	1377.0		1700		76		–		1510		5	–	–		–		1590		32	62
56	1400	1422.4	1428.0		1755		78		–		1560		5	–	–		–		1640		36	62
60	1500	1524.0	1529.0		1865		80		–		1670		5	–	–		–		1750		36	62

Pressure Ratings of Socket Weld Flange

Temp -29 °C	150	300	400	600	900	1500	2500
38	19.6	51.1	68.1	102.1	153.2	255.3	425.5
50	19.2	50.1	66.8	100.2	150.4	250.6	417.7
100	17.7	46.6	62.1	93.2	139.8	233	388.3
150	15.8	45.1	60.1	90.2	135.2	225.4	375.6
200	13.8	43.8	58.4	87.6	131.4	219	365
250	12.1	41.9	55.9	83.9	125.8	209.7	349.5
300	10.2	39.8	53.1	79.6	119.5	199.1	331.8
325	9.3	38.7	51.6	77.4	116.1	193.6	322.6
350	8.4	37.6	50.1	75.1	112.7	187.8	313
375	7.4	36.4	48.5	72.7	109.1	181.8	303.1
400	6.5	34.7	46.3	69.4	104.2	173.6	289.3
425	5.5	28.8	38.4	57.5	86.3	143.8	239.7
450	4.6	23	30.7	46	69	115	191.7
475	3.7	17.4	23.2	34.9	52.3	87.2	145.3
500	2.8	11.8	15.7	23.5	35.3	58.8	97.9
538	1.4	5.9	7.9	11.8	17.7	29.5	49.2
Temp °C	150	300	400	600	900	1500	2500

Pressure-Temperature Ratings for ASTM Group 2-2.3 Materials Working pressure by Classes, BAR
Temp -29 °C	150	300	400	600	900	1500	2500
38	15.9	41.4	55.2	82.7	124.1	206.8	344.7
50	15.3	40	53.4	80	120.1	200.1	333.5
100	13.3	34.8	46.4	69.6	104.4	173.9	289.9
150	12	31.4	41.9	62.8	94.2	157	261.6
200	11.2	29.2	38.9	58.3	87.5	145.8	243
250	10.5	27.5	36.6	54.9	82.4	137.3	228.9
300	10	26.1	34.8	52.1	78.2	130.3	217.2
325	9.3	25.5	34	51	76.4	127.4	212.3
350	8.4	25.1	33.4	50.1	75.2	125.4	208.9
375	7.4	24.8	33	49.5	74.3	123.8	206.3
400	6.5	24.3	32.4	48.6	72.9	121.5	202.5
425	5.5	23.9	31.8	47.7	71.6	119.3	198.8
450	4.6	23.4	31.2	46.8	70.2	117.1	195.1
Temp °C	150	300	400	600	900	1500	2500

Socket Weld Flange Dimensions

Class	150	300	400	600	900	1500	2500
Diameter - A	30	38	...	38	...	38	...
Diameter - D	90	95	...	95	...	120	...
Thickness - B	9.6	12.7	...	14.3	...	22.3	...
Thickness - B	11.2	14.3	...	20.7	...	28.7	...
Diameter - G	35.1	35.1	...	35.1	...	35.1	...
Diameter - K	60.3	66.7	...	66.7	...	82.6	...
Height - H	14	21	...	22	...	32	...
Height - H	15.6	22.6	...	28.4	...	38.4	...
Bolt Holes	4	4	...	4	...	4	...
Diameter - L	15.9	15.9	...	15.9	...	22.2	...
Stud Bolts Diameter x Length
Diameter (in)	1/2	1/2	...	1/2	...	3/4	...
Length (mm)	55	65	...	75	...	110	...

NPS

1/2

3/4

1¼

1½

2½

Weight Chart of Socket Weld Flange

CLASS	Nominal Pipe Size	Socket Weld
150 lb	½	2
	¾	2
	1	2
	1¼	3
	1½	3
	2	5
	2½	8
	3	9
	3½	11
	4	13
	5	15
	6	19
	8	30
	10	43
	12	64
	14	90
	16	98
	18	130
	20	165
	22	185
	24	220

CLASS	Nominal Pipe Size	Socket Weld
300 lb	½	3
	¾	3
	1	3
	1¼	4
	1½	6
	2	7
	2½	10
	3	13
	3½	17
	4	22
	5	28
	6	39
	8	58
	10	81
	12	115
	14	165
	16	190
	18	250
	20	315
	22	370
	24	475

CLASS	Nominal Pipe Size	Socket Weld
400 lb	½	2
	¾	3
	1	3.5
	1¼	4.5
	1½	6.5
	2	8
	2½	12
	3	15
	3½	21
	4	26
	5	31
	6	44
	8	67
	10	91
	12	130
	14	191
	16	253
	18	310
	20	378
	22	405
	24	539

CLASS	Nominal Pipe Size	Socket Weld
600 lb	½	2
	¾	3
	1	4
	1¼	5
	1½	7
	2	9
	2½	13
	3	16
	3½	21
	4	37
	5	63
	6	80
	8	15
	10	177
	12	215
	14	259
	16	366
	18	476
	20	612
	22	590
	24	876

CLASS	Nominal Pipe Size	Socket Weld
900 lb	½	6
	¾	6
	1	7.5
	1¼	10
	1½	14
	2	22
	2½	31
	3	36
	4	53
	5	83
	6	110
	8	172
	10	245
	12	326
	14	400
	16	459
	18	647
	20	792
	24	1480

CLASS	Nominal Pipe Size	Socket Weld
1500 lb	½	6
	¾	6
	1	8
	1¼	10
	1½	14
	2	25
	2½	36
	3	48
	4	73
	5	132
	6	165
	8	260
	10	436
	12	667
	14	940
	16	1250
	18	1625
	20	2050
	24	2825

CLASS	Nominal Pipe Size	Socket Weld
2500 lb	½	….
	¾	….
	1	….
	1¼	….
	1½	….
	2	….
	2½	….
	3	….
	4	….
	5	….
	6	….
	8	….
	10	….
	12	….

ASTM Specification of Socket Weld Flange

Alloy Steel High-Temp Socket Weld Flange
- A182 Gr F1 Socket Weld Flange
- A182 Gr F11 Socket Weld Flange
- A182 Gr F12 Socket Weld Flange
- A182 Gr F22 Socket Weld Flange
- A182 Gr F5 Socket Weld Flange
- A182 Gr F9 Socket Weld Flange
Alloy Steel Low-Temp Socket Weld Flange
- A350 Gr LF2 Socket Weld Flange
- A350 Gr LF3 Socket Weld Flange
Austenitic Stainless Steel Socket Weld Flange
- A182 Gr F304 Socket Weld Flange
- A182 Gr F316 Socket Weld Flange
- A182 Gr F321 Socket Weld Flange
- A182 Gr F347 Socket Weld Flange
- A182 Gr F304L Socket Weld Flange
- A182 Gr F316L Socket Weld Flange
- A182 Gr F317 Socket Weld Flange
- A182 Gr F317L Socket Weld Flange
- A182 Gr F321 Socket Weld Flange
- A182 Gr F310 Socket Weld Flange
- A182 Gr 347 Socket Weld Flange

Nickel Alloy Socket Weld Flange
- ASTM B564 Socket Weld Flange
- astm b564 uns n06600 Socket Weld Flange
- astm b564 uns n06625 Socket Weld Flange
- astm b564 uns no4400 Socket Weld Flange
- astm b564 uns n08810 Socket Weld Flange
- astm b564 uns n08811 Socket Weld Flange
- astm b564 uns n08825 Socket Weld Flange
- astm b564 uns n04400 Socket Weld Flange
- astm b564 uns n10276 Socket Weld Flange
- astm b564 uns n10665 Socket Weld Flange
Titanium Socket Weld Flange
- astm b381 grade f2 Socket Weld Flange
- astm b381 f5 Socket Weld Flange
- astm b381 f3 Socket Weld Flange
- astm b381 f12 Socket Weld Flange
- astm b381 f7 Socket Weld Flange
- Other grades: ASTM B381 F1, F2, F2H, F3, F4, F5, F6, F7, F7H, F9, F10, F11, F12, F13, F14, F15, F16, F16H, F17, F18, F19, F20, F21, F23, F24, F25, F26 , F26H, F27, F28, F29, F30, F31, F32, F33, F34, F35, F36, F37, F38 Socket Weld Flange
- Carbon Steel Socket Weld Flange
  - A105 Socket Weld Flange

Type of Socket Weld Flange we produce/ Socket Weld Flange For Sale

Socket Weld Flange Class 900	Socket Weld Flange Flat Face
Socket Weld Flange Pn16	Kf Socket Weld Flange
Socket Weld Flange Class 2500	Socket Weld Flange Slip On
Socket Weld Flange Din 2527	Socket Weld Flange Weight 150#
Socket Weld Flange Din 2576	Socket Weld Flange With 1/2 Npt
Socket Weld Flange Pn 64	Socket Weld Flange Ansi B16.5 150
Socket Weld Flange Class 150	Socket Weld Flange Threaded
Socket Weld Flange Pn10	Socket Weld Flange B16.47
Socket Weld Flange Pn40	Socket Weld Flange Rtj 900
Socket Weld Flange Pn 160	Socket Weld Flange Rtj
Socket Weld Flange Class 1500	Socket Weld Flange Npt
Socket Weld Flange Dn150 Pn16	Socket Weld Flange Jis 5k
Socket Weld Flange Class 600	Socket Weld Flange Jis B2220
Socket Weld Flange Asme B16.5 Class 300	Socket Weld Flange Ring Type Joint
Socket Weld Flange Din 2633	Socket Weld Flange Rtj 1500
Socket Weld Flange Class 300	Socket Weld Flange With Threaded Hole
Socket Weld Flange Din En 1092-1	Socket Weld Flange Jis 10k

Socket Weld Flange Material

Stainless Steel Socket Weld Flange	ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M, CF3M, DIN 1.4301, DIN 1.4306, DIN 1.4401, DIN 1.4404, DIN 1.4308, DIN 1.4408, DIN 1.4306, DIN 1.4409
Carbon Steel Socket Weld Flange	ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN 1.0402, DIN 1.0460, DIN 1.0619, Die Steel, ASTM A105 / ASME SA105, A105N, ASTM A350 LF2 / ASME SA350, High Yield CS ASTM A694 / A694 (F52 F56 F60 F65 F70 F80)
Titanium Socket Weld Flange	ASTM B381 / ASME SB381, Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7 ASTM R50250/GR.1 \| R50400/GR.2 \| R50550/GR.3 \| R50700/GR.4 \| GR.6 \|R52400/GR.7 \| R53400/GR.12 \| R56320/GR.9 \|R56400/GR.5
Alloy Steel Socket Weld Flange	ASTM A182 / ASME SA182 F5, F9, F11, F12, F22, F91
Copper Nickel Socket Weld Flange	ASTM / ASME SB 61 / 62 / 151 / 152, Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Copper Socket Weld Flange	T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Inconel Socket Weld Flange	ASTM B564 / ASME SB564, Inconel 600, 601, 625, 718, 783, 690, x750 Socket Weld Flange
Brass Socket Weld Flange	3602 / 2604 / H59 / H62 / etc.
Monel Socket Weld Flange	ASTM B564 / ASME SB564, Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
Hastelloy Socket Weld Flange	ASTM B564 / ASME SB564, Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X Flanges
Aluminium Socket Weld Flange	5052 /6061/ 6063 / 2017 / 7075 / etc.
Alloy 20 Socket Weld Flange	ASTM B462 / ASME SB462, Carpenter® 20 Alloy, Alloy 20Cb-3
Duplex Socket Weld Flange	S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Nickel Socket Weld Flange	ASTM B564 / ASME SB564, Nickel 200, Nickel 201, Nickel 205, Nickel 205LC
Incoloy Socket Weld Flange	ASTM B564 / ASME SB564, Incoloy 800, 800H, 800HT (UNS N08800), 825 (UNS N08825), 925 Flanges
Super Duplex Socket Weld Flange	S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Other Socket Weld Flange material	Tin bronze, Alumunum bronze, Lead bronze
Nimonic Socket Weld Flange	Nimonic 75, Nimonic 80A, Nimonic 90
254 Smo Socket Weld Flange	ASTM A182 / ASME SA182, SMO 254/6Mo, UNS S31254, DIN 1.4547

Types of Socket Weld Flange

ANSI B16.5 class 150 SWRF Flange Stockholder	High Quality SWRF Flanges
Socket weld Flange Class 900	Socket Weld Flange Welding
4 Bolt Socket Weld flange	ANSI 150 Socket weld Flange
Socket weld Flange Class 2500	1 inch Socket weld Flange
Flat Face SWRF Flange	Socket weld Flange Class 900
Socket Weld Flange PN16	ASME B16.47 Series A and B SWRF Flanges
2 inch Socket weld Flange	ANSI B16.5 Class 150 Socket weld Flanges
ANSI B16.5 Socket weld Flanges	Socket weld Flange Dimensions
ASME B16.5 SWRF Flanges	Raised Faced Socket weld Flanges
Stainless Steel Socket weld Flanges Suppliers	Socket Weld Tube Flange
Socket Weld Raised Face Flange	300# Socket Weld Flange
Socket weld Flange Class 600	Socket weld Pipe Flanges
Socket Weld RTJ Flange	6 inch Socket weld Flange
Socket weld Ring Type Joint Flanges	3 inch Socket weld Flange
4 inch Socket weld Flange	Socket weld Flange Class 300

Find Socket Weld Flange Thickness Calculation For Pressure Vessel, Socket Weld Flange Thickness Calculation Formula Xls

Socket Weld Flange Uses

Power Plant
Oil & Gas
Cement
Chemical
Fertilizers
Sugar
Petrochemical
Refineries
Breweries
Nuclear Power
Paper
Socket Weld Flange For Hydrotest
Socket Weld Flange For Pressure Test

Offshore
Mining
Construction
Shipbuilding
Engineering Co. &
Oil Mills
Steel Plant
Railway
Defence
Ports
Government Org. etc.
Socket Weld Flange For Hdpe Pipe
Socket Weld Flange Oil And Gas

Stock Of Socket Weld Flange

Slip Socket Weld Flange
Tapped Socket Weld Flange
Paddle Socket Weld Flange
Victaulic Socket Weld Flange
Api Socket Weld Flange
Asme Socket Weld Flange
Aluminum Socket Weld Flange
Socket Weld Flange Asme B16.5
Socket Weld Flange A105
socket weld flange vs weld neck flange
Socket Weld Flange Asme
Socket Weld Flange Awwa C207 Class D
Socket Weld Flange Api 6a
Socket Weld Flange Ansi 600
Socket Weld Flange B16.5
Socket Weld Flange Bolts
Grayloc Socket Weld Flange
Socket Weld Flange Hdpe
Socket Weld Flange Hub
Socket Weld Flange With Tap
Socket Weld Flange With Hole
Socket Weld Flange Water Main
Socket Weld Flange With Drain
Socket Weld Flange With Hub
Socket Weld Flange Tapped
Socket Weld Flange Vessel
Blind Orifice Flange
Socket Weld Flange Slip On
Socket Weld Flange Ring Type Joint
Harga Socket Weld Flange Jis 10k
Jual Socket Weld Flange
Socket Weld Flange Pipe
Socket Weld Flange Pn16
Socket Weld Flange Plate
Socket Weld Flange Raised Face
Socket Weld Flange Rtj

Socket Weld Flange En 1092-1
Socket Weld Flange En 1092
Socket Weld Flange End Connection
Socket Weld Flange Din En 1092-1
Socket Weld Flange Face
Socket Weld Flange Class 150
Socket Weld Flange Cap
Socket Weld Flange Carbon Steel
Socket Weld Flange Class 300
Socket Weld Flange Class 600
Socket Weld Flange Drilled And Tapped
Socket Weld Flange B16.47
Socket Weld Flange Brass
Socket Weld Flange With Bleed Valve
Socket Weld Flange Series B
Socket Weld Flange Asme B16.5 Class 300
Kf Socket Weld Flange
Socket Weld Flange Lifting Device
Socket Weld Flange Lifting Lug
Socket Weld Flange Lockout
Socket Weld Flange Npt
Socket Weld Flange Nozzle
Socket Weld Flange Nps
Socket Weld Flange Need Gasket
Socket Weld Flange With Npt Tap
Socket Weld Flange With Npt Thread
Socket Weld Flange With Npt Hole
Socket Weld Flange Od Chart
Socket Weld Flange On P&Id
Socket Weld Flange Ring Type Joint
Socket Weld Flange Rtj 900
Socket Weld Flange Rtj 1500
Socket Weld Flange Rtj 2500
Socket Weld Flange Need Gasket
Blind Kidney Flange
Socket Weld Flange Plumbing

Super Duplex, Titanium, and Nickel Alloy Socket Weld Flanges are available from stockists in India. For additional information, see Jis 10k Pressure Rating Socket Weld Flange and 8 Aluminum Socket Live Weight of Tapped Socket Weld Flange Check Paddle Socket, Victaulic Socket, and Weld Flange Dimensions of an ASME 16.48 spectacle socket weld with the weld flange
