EN 1092-1 Flange Dimension

One of the most widely used flangings worldwide is the EN 1092-1 Equivalent ASME. The EN 1092-1 Flange Table, which is now ANSI flanging to ANSI B16.5, is appropriate in fields or businesses such those of oil, gas, and mining. However, the AS2129 Table flanging is the one that is most frequently utilised in various general industrial, waste/water, as well as commercial businesses. Apart from the EN 1092-1, increasingly European-rated EN 1092-1 Type 11 PN10 Flange is also specified in standards like the BS4504 and AS4331.

Table of Content

En 1092-1 Pn40/ Pn6/ Pn25/ Pn 63 Flange at discounted prices, buy large or small quantity Din En 1092 1 Type 11 Form B1 Flanges With Raised Face

The En 1092-1 Type 11 Welding Neck Flange has taken the place of the BS4504 standard, which is currently regarded as being out of date. British Standards also list this EN 1092-1 Slip On Flange under the designation BS-EN 1092. The DIN 2501 standard was the ancestor of the En 1092-1 Flange Material. The DIN 2501 standard, which is now a part of ISO 7005, led to the development of Flange EN 1092-1 RF as the benchmark for DIN-based flanges.

The former DIN 2501 specification and the now-outdated BS4504 flanges were generally equivalent, however the new Lap Joint Flange En 1092 standard has a larger scope. The Flat Flange EN 1092-1 standard is not just intended to be used for steel flanges; it can also be used for iron flanges, alloy flanges, and aluminium alloy flanges.

Nominal Pressure is represented by PN in the En 1092-1 Pn 63 Flange. The En 1092-1 Pn25 Flange's nominal pressure roughly equals to the amount of bars. For instance, the nominal pressure for the En 1092-1 Pn40 Flange is 40 bars if the cold working pressure for PN10 is 10 bars. Flange Manufacturers for EN 1092-1 These flanges, with ratings ranging from PN2.5 to PN420, are produced in India. This rating system is mentioned in the most recent Australian standard, AS4331.

The ISO 7005, which is based on the American and European flange systems, is replicated by both the Din En 1092 1 Type 11 Form B1 Flanges With Raised Face and the AS4331. Nominal pressure grades like PN20, PN50, PN110, PN150, PN260, and PN420 steel En 1092-1 Type 01 Plate Flange are made to be interchangeable with flanges made to American standards like the ANSI/ASME B16.5 and the MSS SP44. The EN 1092-1 Type 02 Loose Flange are deemed to comply with the dimensions that have been specified in ANSI/ASME B16.5 and MSS SP44 as appropriate, even though they are not exactly the same as the American standards (Pn6 Flange).

Forging and stamping are two of the primary procedures employed by the manufacturer to create the EN 1092-1 Threaded Flange. Numerous manufacturers additionally produce unique, customised flanges based on the specifications or drawings provided by customers in addition to adhering to the EN 1092-1 Type 12 Flange standard. The EN 1092-1 Type 11 Flange is typically used in the petrochemical and related sectors, in addition to the oil and gas sector.

We have a huge selection of En 1092-1 Type 01 Plate Flange, EN 1092-1 Type 02 Loose Flange at low prices in india, EN 1092-1 Type 11 / Type 12 Threaded Flange

SS En 1092-1 Threaded Flanges
SS En 1092-1 Threaded Flanges
ANSI B16.5 Class 150 EN 1092-1 Loose Flanges
ANSI B16.5 Class 150 EN 1092-1 Loose Flanges

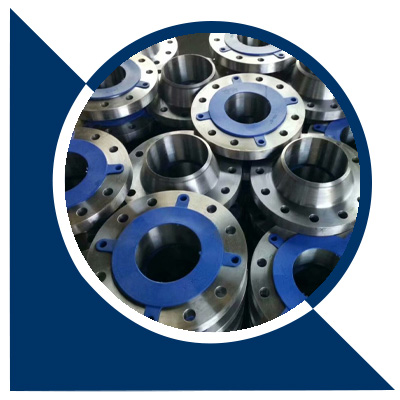

ANSI B16.5 En 1092-1 Flange
ANSI B16.5 En 1092-1 Flange



Specification of EN 1092-1 Flange
  •  Standard:EN 1092-1 Flange.
  •  Dimensions : ANSI B16.5, DIN Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
  •  Size : 1/2" (15 NB) to 48" (1200NB)
  •  Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
  •  Flange Face Type : Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)



EN1092-1 steel and stainless flanges, have several different versions of raised or none raised faces.

Form: types of Contact Faces
DIN EN 1092-1
Without Raised Face
Form A
Raised Face (Rz = 160 Mechanical Turned)
Form B1
Raised Face ( Rz = 40 Mechanical Turned)
Form B1
Raised Face (Rz = 16 Mechanical Turned)
Form B2
Tongue According to DIN2512
Form C
Groove According to DIN 2512
Form D
Male According to DIN 2513
Form E
Female According to DIN 2513
Form F
Female According to DIN 2514
Form G
Male According to DIN 2514
Form H



SS EN 1092-1 Material
  •  Stainless Steel EN 1092-1 Flange : ASTM A182 F 304/304L, 316/316L, 321, 347, 348 (stainless steel flanges), 904/904L
  •  Carbon Steel : ASTM A 105 (high temperature carbon steel), ASTM A350 LF1 to LF3 (low temperature carbon steel), ASTM A694 Gr. F42 / F52 / F56 / F60 / F65 (high yield carbon steel flange to match API 5L linepipes)
  •  Alloy Steel : ASTM A182 Gr. F1 / F2 / F5 / F9 / F11 Cl. 2 / F12 Cl. 2 / F22 Cl. 3 / F91 (alloy steel flanges)
  •  Duplex Steel EN 1092-1 Flange : ASTM A182 F51 (duplex flanges) / F53-F55 (super duplex)
  •  Nickel Alloys / Super Alloys EN 1092-1 Flange : ASTM B166 UNS NO6600 (inconel 600) ASTM B564 UNS N06625 (Inconel 625), ASTM B425 UNS-NO8800 (Incoloy 800), ASTM B564 UNS N08825 (Incoloy 825), ASTM B160 UNS N0200 (Nickel 200), ASTM B564 UNS N04400 (Monel 400), ASTM B564 UNS N10276 (Hastelloy C-276)
  •  Titanium EN 1092-1 Flange : ASTM B381 Gr. 2 (Titanium)
  •  Aluminium EN 1092-1 Flange, Copper EN 1092-1 Flange, Polypropylene EN 1092-1 Flange, etc.



Price List of ANSI B16.5 EN 1092-1 Flange
Sl No. Description Size Aprox. Wt/Unit FOB
INR		 CIF
INR		 FOB
USD		 CIF
USD		 FOB
STGP		 CIF
STGP		 FOB
EURO$		 CIF
EURO$
1
EN 1092-1 Type 11 SORF Flange A182 F304 150#
15mm
0.49
349.60
380.00
5.297
5.758
3.567
3.878
6.356
6.909
2
EN 1092-1 Type 11 SORF Flange A182 F304 150#
20mm
0.61
434.70
472.50
6.586
7.159
4.436
4.821
7.904
8.591
3
EN 1092-1 Type 11 SORF Flange A182 F304 150#
25mm
0.90
699.20
760.00
10.594
11.515
7.135
7.755
12.713
13.818
4
EN 1092-1 Type 11 SORF Flange A182 F304 150#
32mm
1.13
737.15
801.25
11.169
12.140
7.522
8.176
13.403
14.568
5
EN 1092-1 Type 11 SORF Flange A182 F304 150#
40mm
1.48
854.45
928.75
12.946
14.072
8.719
9.477
15.535
16.886
6
EN 1092-1 Type 11 SORF Flange A182 F304 150#
50mm
2.37
1164.95
1266.25
17.651
19.186
11.887
12.921
21.181
23.023
7
EN 1092-1 Type 11 SORF Flange A182 F304 150#
65mm
3.60
2096.45
2278.75
31.764
34.527
21.392
23.253
38.117
41.432
8
EN 1092-1 Type 11 SORF Flange A182 F304 150#
80MM
4.10
2794.50
3037.50
42.341
46.023
28.515
30.995
50.809
55.227
9
EN 1092-1 Type 11 SORF Flange A182 F304 150#
100mm
6.04
3105.00
3375.00
47.045
51.136
31.684
34.439
56.455
61.364
10
EN 1092-1 Type 11 SORF Flange A182 F304 150#
125mm
6.53
3493.70
3797.50
52.935
57.538
35.650
38.750
63.522
69.045
11
EN 1092-1 Type 11 SORF Flange A182 F304 150#
150mm
7.78
4968.00
5400.00
75.273
81.818
50.694
55.102
90.327
98.182
12
EN 1092-1 Type 11 SORF Flange A182 F304 150#
200mm
12.98
9004.50
9787.50
136.432
148.295
91.883
99.872
163.718
177.955
13
EN 1092-1 Type 11 SORF Flange A182 F304 150#
250mm
17.96
11643.75
12656.25
176.420
191.761
118.814
129.145
211.705
230.114



Application of ANSI B16.5 EN 1092-1 Flange
  •  Flanges uses in Oil and Gas Pipeline
  •  Slip On Flanges uses in Paper & Pulp Industry
  •  EN 1092-1 Blind Flanges uses in  Water Supply Systems
  •  Loose Flanges uses in Oil & Gas Industry
  •  EN 1092-1 Plate Flanges uses in Plumbing
  •  EN 1092-1 Threaded Flanges uses in Chemical Industry



Pressure Ratings of ANSI B16.5 Class 150 Flange









Temperature







FLANGE TABLE

-10°C to 200°C

250°C

300°C

350°C

400°C

425°C

450°C

475°C



















6

6

5.5

5

–

–

–

–

–



















10

10

9

8

7

6

–

–

–



















16

16

15

13

11

9

–

–

–



















25

25

24

21

17

14

12

9

6



















40

40

38

33

28

23

20

15

10



















64

64

61

53

44

36

32

24

16



















100

100

95

83

70

57

50

37

25



















160

160

152

132

112

92

80

60

40



EN 1092-1 Type 11 PN10 Flange Dimensions

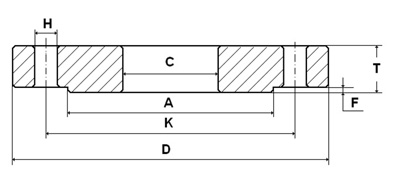

Dimensions of EN 1092-1 Flange
Dimensions of EN 1092-1 Flange
Flange DN
Pipe
Flange
Screws
Flange Weight
d1
k
D
b
d2
Bolt holes
KG
15
21,3
22,0
55
80
12
11
4
0,401
20
26,9
27,5
65
90
14
11
4
0,590
25
33,7
34,5
75
100
14
11
4
0,716
32
42,4
43,5
90
120
16
14
4
1,153
40
48,3
49,5
100
130
16
14
4
1,344
50
60,3
61,5
110
140
16
14
4
1,478
65
76,1
77,5
130
160
16
14
4
1,850
80
88,9
90,5
150
190
18
18
4
2,944
100
114,3
116,0
170
210
18
18
4
3,247
125
139,7
141,5
200
240
20
18
8
4,301
150
168,3
170,5
225
265
20
18
8
4,741
200
219,1
221,5
280
320
22
18
8
6,862
250
273,0
276,5
335
375
24
18
12
8,893
300
323,9
327,5
395
440
24
22
12
11,880
350
355,6
359,5
445
490
26
22
12
16,788
400
406,4
411,0
495
540
28
22
16
19,781
450
457,0
462,0
550
595
30
22
16
24,495
500
508,0
513,5
600
645
30
22
20
26,307
600
610,0
616,5
705
755
32
26
20
34,702
700
711,0
714,2
810
860
40
26
24
52,441
800
813,0
815,8
920
975
44
30
24
71,262
900
914,0
917,4
1020
1075
48
30
24
86,269
1000
1016,0
1019,0
1120
1175
52
30
28
101,340
1200
1220,0
1224,0
1340
1405
60
33
32
162,638
1400
1420,0
1424,0
1560
1630
72
36
36
257,772
1600
1620,0
1624,0
1760
1830
80
36
40
324,382
1800
1820,0
1826,0
1970
2045
88
39
44
422,35
2000
2020,0
2026,0
2180
2265
96
42
48
555,18



Dimensions of EN 1092-1 Type PN10 Flange
Dimensions of EN 1092-1 Type PN10 Flange
Flange DN
Pipe
Flange
Screws
Flange Weight
d1
k
D
b
d2
Bolt holes
KG
200
219,1
221,5
295
340
24
22
8
9,244
250
273,0
276,5
350
395
26
22
12
11,788
300
323,9
327,5
400
445
26
22
12
13,578
350
355,6
359,5
460
505
30
22
16
21,766
400
406,4
411,0
515
565
32
26
16
27,436
450
457,2
462,0
565
615
36
26
20
33,470
500
508,0
513,5
620
670
38
26
20
40,103
600
610,0
616,5
725
780
42
30
20
54,297
700
711,0
714,2
840
895
50
30
24
82,777
800
813,0
815,8
950
1015
56
33
24
116,534
900
914,0
917,4
1050
1115
62
33
28
141,425
1000
1016,0
1019,0
1160
1230
70
36
28
188,561
1200
1219,0
1224,0
1380
1455
83
39
32
290,884



Dimensions of EN 1092-1 Type PN16 Flange
Dimensions of EN 1092-1 Type PN16 Flange
Flange DN
Pipe
Flange
Screws
Flange Weight
d1
k
D
b
d2
Bolt holes
KG
10
17,2
18,0
60
90
14
14
4
0,602
15
21,3
22,0
65
95
14
14
4
0,668
20
26,9
27,5
75
105
16
14
4
0,933
25
33,7
34,5
85
115
16
14
4
1,106
32
42,4
43,5
100
140
18
18
4
1,816
40
48,3
49,5
110
150
18
18
4
2,075
50
60,3
61,5
125
165
20
18
4
2,723
65
76,1
77,5
145
185
20
18
4
3,310
80
88,9
90,5
160
200
20
18
8
3,592
100
114,3
116,0
180
220
22
18
8
4,375
125
139,7
141,5
210
250
22
18
8
5,394
150
168,3
170,5
240
285
24
22
8
7,123
200
219,1
221,5
295
340
26
22
12
9,705
250
273,0
276,5
355
405
29
26
12
14,164
300
323,9
327,5
410
460
32
26
12
18,928
350
355,6
359,0
470
520
35
26
16
28,118
400
406,4
411,0
525
580
38
30
16
35,754
450
457,0
462,0
585
640
42
30
20
45,992
500
508,0
513,5
650
715
46
33
20
63,832
600
610,0
616,5
770
840
55
36
20
101,285
700
711,0
714,2
840
910
63
36
24
111,103
800
813,0
815,8
950
1025
74
39
24
158,555
900
914,0
917,4
1050
1125
82
39
28
192,239
1000
1016,0
1019,0
1170
1255
90
42
28
269,554



Dimensions of EN 1092-1 Type PN25 Flange
Dimensions of EN 1092-1 Type PN25 Flange
Flange DN
Pipe
Flange
Screws
Flange Weight
d1
k
D
b
d2
Bolt holes
KG
15
21,3
22,0
65
95
14
14
4
0,668
20
26,9
27,5
75
105
16
14
4
0,933
25
33,7
34,5
85
115
16
14
4
1,106
32
42,4
43,5
100
140
18
18
4
1,816
40
48,3
49,5
110
150
18
18
4
2,075
50
60,3
61,5
125
165
20
18
4
2,723
65
76,1
77,5
145
185
22
18
8
3,465
80
88,9
90,5
160
200
24
18
8
4,310
100
114,3
116,0
190
235
26
22
8
6,056
125
139,7
141,5
220
270
28
26
8
8,170
150
168,3
170,5
250
300
30
26
8
10,238
200
219,1
221,5
310
360
32
26
12
14,245
250
273,0
276,5
370
425
35
30
12
20,087
300
323,9
327,5
430
485
38
30
16
26,526
350
355,6
359,5
490
555
42
33
16
41,656
400
406,4
411,0
550
620
48
36
16
57,456
450
457,0
462,0
600
670
54
36
20
69,548
500
508,0
513,5
660
730
58
36
20
86,736
600
610,0
616,5
770
845
68
39
20
126,866
700
711,2
714,0
875
960
85
42
24
193,031
800
812,8
816,0
990
1085
95
48
24
266,311



Dimensions of EN 1092-1 Type PN40 Flange
Dimensions of EN 1092-1 Type PN40 Flange
Flange DN
Pipe
Flange
Screws
Flange Weight
d1
k
D
b
d2
Bolt holes
KG
15
21,3
22,0
65
95
14
14
4
0,668
20
26,9
27,5
75
105
16
14
4
0,933
25
33,7
34,5
85
115
16
14
4
1,106
32
42,4
43,5
100
140
18
18
4
1,816
40
48,3
49,5
110
150
18
18
4
2,075
50
60,3
61,5
125
165
20
18
4
2,723
65
76,1
77,5
145
185
22
18
8
3,465
80
88,9
90,5
160
200
24
18
8
4,310
100
114,3
116,0
190
235
26
22
8
6,056
125
139,7
141,5
220
270
28
26
8
8,170
150
168,3
170,5
250
300
30
26
8
10,238
200
219,1
221,5
320
375
36
30
12
17,871
250
273,0
276,5
385
450
42
33
12
29,166
300
323,9
327,5
450
515
52
33
16
44,921
350
355,6
359,5
510
580
58
36
16
66,460
400
406,4
411,0
585
660
65
39
16
96,822



Types of En 1092-1 Flange
Design
According to EN Type
Weld Neck Flange
Type 11
Blind Flange
Type 05
Threaded Flange
Type 12
Flat Flange
Type 01
Lapped Flange
Type 02 & Type 04



Lap Joint Flange En 1092, Most trusted and reliable Flat Flange En 1092-1, En 1092-1 Type 11 Welding Neck Flange suppliers in Mumbai, India

Other Types of EN 1092-1 Flange
EN 1092-1 PN16 Flanges
Copper Nickel EN 1092-1 Pipe Flanges
EN 1092-1 Plate Flange
Flat Flange EN 1092-1
Stainless Steel EN 1092-1 Flanges Suppliers
SS EN 1092-1 Flange Exporter
EN 1092-1 Flange Manufacturers
Face Flanges Suppliers
Carbon Steel EN 1092-1 Flange
High Quality Flanges Manufacturer
Super Duplex Steel EN 1092-1 Flange
Flange EN 1092-1 Form B1
ANSI B16.5 Class 150 EN 1092-1 Flange
EN 1092-1 Flange
ANSI B16.5 EN 1092-1 Flanges
EN 1092-1 Flanges Stockist
EN 1092-1 Slip On Flanges
Flanges as per EN 1092-1
EN 1092-1 Raised Face Flange
EN 1092-1 Flange RF
Copper Nickel EN 1092-1 Pipe Flanges
ANSI B16.5 Class 150 Flanges
High Nickel Alloy EN 1092-1 Flanges
Super Duplex Steel Flange
Carbon Steel EN 1092-1 Flanges
Duplex Steel EN 1092-1 Flange
Stainless Steel EN 1092-1 Flanges
EN 1092-1 Flange Dimensions
EN 1092-1 PN10 Flanges
EN 1092-1 Forged Flanges
EN 1092-1 Flange
EN 1092-1 Loose Flanges
High Nickel Alloy EN 1092-1 Flanges
Inconel EN 1092-1 Flanges
Carbon Steel EN 1092-1 Flange
High Quality EN 1092-1 Flanges
Flange EN 1092-1 Form B1
Hastelloy EN 1092-1 Flanges
EN 1092-1 Blind Flange
EN 1092-1 Threaded Flanges
En 1092-1 Flange Material Specification, View Din En 1092-1 Pn-40 / PN25/ Pn 63 Flange Dimensions
EN 1092-1 Type 11 PN10 Flange, EN 1092-1 Slip On Flange, Flange EN 1092-1 RF, Get Flanges UNI EN 1092-1, EN 1092-1 Equivalent ASME stock at lower prices compared to USA & UK, EN 1092-1 Flange Table



Buttweld Fittings
