SANS/ SABS 1123 Flanges Dimensions

A specification that addresses flanges and bolting for valves, pipes, and fittings is known as the British Standard SABS or the standard for SANS 1123 Flange, 1962. Ten tables in this Sans 1123 T1000 provide coverage for boss, plain, integrally cast or forged, and welding neck type flanges. Despite being out of date, these SABS 1123 flanges are still utilised to create light-duty, inexpensive stainless steel flanges.

Table of Content

Sabs 1123 Threaded Flanges, Buy Sabs 1123 Table 1000/3 Flanges, Sabs 1123 Flange Material at factory price in India

The Sans 1123 Table 1600/3 is used in applications where cleanliness and/or corrosion resistance are more important criteria than the usual high pressures and temperatures. The stainless steel SABS 1123 Class 1000 Flanges are available in sizes ranging from DN10 to DN5000, or 12 inch (15 NB) to 48 inch (1200 NB). While the SABS 1123 Stainless Steel Flanges' Pressure Rating ANSI Class covers the following classes: 150 lbs, 300 lbs, 600 lbs, 900 lbs, 1500 lbs, and 2500 lbs. The SABS 1123 CLASS 600 Flanges can also be surface treated, just like any fasteners. For instance, Oil Black Paint or Anti-Rot Paint could be applied on SABS 1123 Carbon Steel Flanges.

In addition to coating, the Sabs 1123 Flange Material can have its surface treated to either plating, such as yellow transparent or zinc plating. Alternately, the Sans 1123 Flange could be cold- or hot-dip galvanised to apply a thicker layer of zinc. Sabs 1123 Class 1000 Flanges often come in threaded, forged, screwed, or plate forms. The Sabs 1123 Threaded Flanges are produced using a variety of production techniques, including forging, heat treating, and machining. The Sabs 1123 Table 1000/3 Flanges are commonly used in bitumen upgraders, heavy oil refineries, mostly seamless nuclear power production, petrochemicals, and acids, among other places.

The connection of Pipe & Tubes in the Petroleum, Gas, Power, Chemical, and Construction industries uses SANS/ SABS 1123 Flanges Dimensions. Similar to this, the SABS 1123 Pipe Flanges are regarded as a crucial component of the metallurgy and shipbuilding sectors due to their strong corrosion resistance. The Sabs 1123 Flange's connector type or flange face type includes all of the available forms, including Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, and Large Tongue & Groove.

Carries a complete line of Sabs 1123 Class 1000 Flanges, Check SABS 1123 Pipe Flanges Weight, SABS 1123 Carbon Steel & Stainless Steel Flanges in mumbai, India

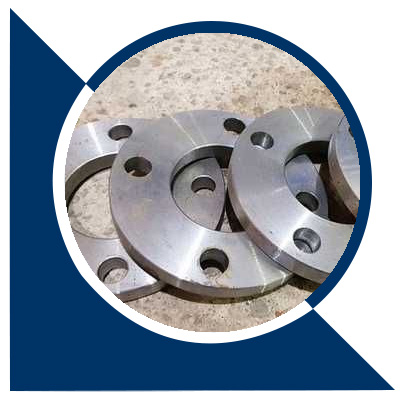

Class 600 SANS 1123 Pipe Flanges
Class 600 SANS 1123 Pipe Flanges

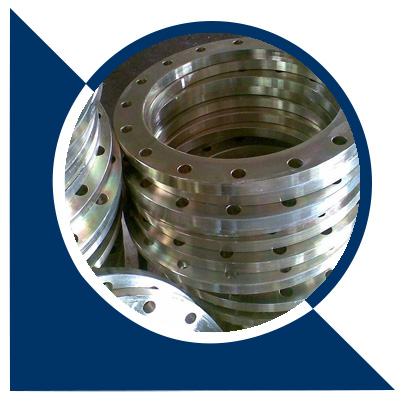

Ansi 150 SANS 1123 Flanges
Ansi 150 SANS 1123 Flanges

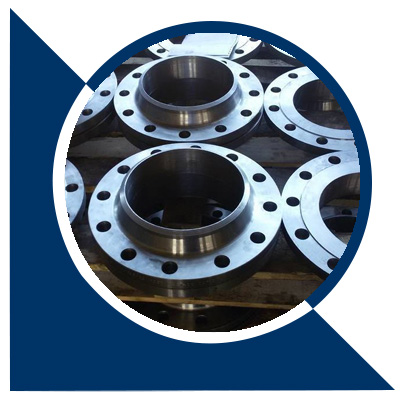

1123 SANS Flanges
1123 SANS Flanges



Specification and Standards of SABS 1123 Flanges
Specifications SABS 1123 Flanges
SABS Flange Standards ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges.
ASME B16.5 SABS Flange size range 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
SABS Flange Standard DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
SABS Flange Standard ANSI Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
SABS Flange Standard UNI 6Bar 10Bar 16Bar 25Bar 40Bar
SABS Flange Standard EN 6Bar 10Bar 16Bar 25Bar 40Bar
SABS Flange Standard SABS 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
Main Types Forged / Threaded / Screwed / Plate
Flange supporting material Gasket, Ring Joint, Flange Bolts
Most common types of SABS Flanges
  • Socket Weld Ring Flange (SWRF), SABS
  • Threaded Ring Flange, SABS
  • Blind Ring Flange (BLRF), SABS
  • Weld Neck Ring Flange (WNRF), SABS
  • Slip-On Ring Flange (SORF), SABS
  • Ring Type Joint Flange (RTJF), SABS
  • Lap Joint Ring Flange (LJRF), SABS
Connect Type/ Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove
SABS Pipe Flanges Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Production technique
  • Forged, Heat treated and machined
Special design

As per your drawing

AS, ANSI, BS, DIN and SABS
15 NB (1/2") to 200 NB (8")
Equal and Reducing Configurations

SABS Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange
Specialized manufacturer of
  • DIN 2566 en 1092 1
  • Pn16 Flange
  • DIN 2566 pn16
  • Rtj Flange
  • SABS Sorf Flange
  • SABS Table Flanges
  • DIN 2566 pn10
  • SABS Large Diameter Flange
  • SABS Threaded Flanges
  • SABS Blind Flanges
  • SABS Plate Flanges
  • SABS Weld Neck Flanges
  • SABS Loose Flanges
  • SABS Orifice Flanges
  • SABS Slip-On Flanges
  • SABS Lap Joint Flanges
  • SABS Socketweld Flanges
  • SABS AS 4087 Water Flanges
Test Hydrostatic testing machine, Direct-reading Spectrograph,UI trasonic flaw detector, X-ray detector, Magnetic particle detector
Equipment Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc
Origin West Europe /Indian / USA / Japan / Korean
SABS 1123 Flanges Standard

ANSI DIN, GOST, SABS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, SABS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange

  • AS 2129: Table D; Table E; Table H
  • B.S: BS4504 , BS3293, BS1560, BS10
  • ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
  • ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
  • American standard (ANSI)
  • ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
  • British standard (BS)
  • German (DIN)
  • Any other specilised flanges
  • The other standard: AWWA C207; EN1092-1, GOST12820, SABS 1123; KS B1503, SABS1123; NFE29203;UNI2276
  • DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638
Key markets and industries for SABS Flange
  • Nuclear power (mostly seamless).
  • Heavy oil refineries.
  • Bitumen upgraders.
  • Petrochemicals and acids.
Export to Indonesia, Ireland, Ukraine, Singapore,Saudi Arabia,Canada, Peru, Dubai, Brazil, Iran, Korea, USA, India, Egypt, Thailand, Spain, Oman etc
SABS 1123 Flanges Application
  • To Connect Pipe & Tubes in Power, Petroleum,Construction, Chemical, Gas, Shipbuilding,Metallurgy, etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175



1123 SABS Flanges manufacturers in India
ASME SABS 1123 Spade Flange
ASME SABS 1123 Spade Flange
ASME B16.5 SANS 1123 Orifice Flange
ASME B16.5 SANS 1123 Orifice Flange
SABS Grade 1123 Nipo flange
SABS Grade 1123 Nipo flange
1123 SABS Square Flanges
1123 SABS Square Flanges
SANS 1123 Threaded Flange
ASME B16.5 SANS 1123 Threaded Flange
SANS 1123 Lap Joint Flanges
SANS 1123 Lap Joint Flanges
1123 SABS Long Weld Neck Flanges
1123 SABS Long Weld Neck Flanges
ASME SABS 1123 Spectacle Blind Flanges
ASME SABS 1123 Spectacle Blind Flanges
ASME B16.5 1123 SABS Ring Type Joint Flanges
ASME B16.5 1123 SABS Ring Type Joint Flanges
1123 SABS Plate Flanges
1123 SABS Plate Flanges
SABS 1123 Reducing Flange
SABS 1123 Reducing Flange
Class 600 SANS 1123 Tongue & Groove Flanges
Class 600 SANS 1123 Tongue & Groove Flanges
SABS 1123 High Hub Blind Flange
SABS 1123 High Hub Blind Flange
SANS Grade 1123 Bleed Rings Flange
SANS Grade 1123 Bleed Rings Flange
1123 SANS Spacer Flange
1123 SANS Spacer Flange
ASME 1123 SABS Forged Flanges
ASME 1123 SABS Forged Flanges
1123 SABS Puddle Flanges
1123 SABS Puddle Flanges
ASME B16.5 1123 SANS Male & Female Flanges
ASME B16.5 1123 SANS Male & Female Flanges
SANS 1123 Raised Face Flanges
SANS 1123 Raised Face Flanges
SABS 1123 Weldoflange
SABS 1123 Weldoflange
1123 SABS Weld Neck Flanges
1123 SABS Weld Neck Flanges
ASME B16.5 1123 SABS Blind Flanges (BLRF)
ASME B16.5 1123 SABS Blind Flanges (BLRF)
SABS 1123 Socket Weld Flanges (SWRF)
SABS 1123 Socket Weld Flanges (SWRF)
1123 SANS Slip On Flanges
1123 SANS Slip On Flanges



SABS 1123 Pipe Flange Pressure Ratings

SABS 1123 Flanges Flange Standards / Types and Pressure Class :

ASME/ANSI B 16.36 Welding Neck Flange, Slip on Flange, Threaded Flange
PRESSURE CLASS 300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.5 Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.47 Welding Neck Flange, Blind Flange [Series A & B]
PRESSURE CLASS 75, 150, 300, 400, 600, 900
BS 4504 SEC 3.1 Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange
PRESSURE CLASS PN 2.5 TO PN 40
BS 4504[PART 1] Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange
PRESSURE CLASS PN 2.5 TO PN 400
BS 1560 BOSS Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
BS10 Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange
TABLE D, E, F, H
DIN FLANGES DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673
PRESSURE CLASS PN 6 TO PN 100



Dimensions of Ansi 150 SANS 1123 Flange

Dimensions & Masses SABS/SANS 1123 Flange

South Africa Standard SABS/SANS 1123 FLange Specifications

Nominal Bore 15 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600/3 80mm 55mm 4 M10 11mm 10mm
SABS1123-1000/3 95mm 65mm 4 M12 14mm 10mm
SABS1123-1600/3 95mm 65mm 4 M12 14mm 10mm
SABS1123-2500/3 95mm 65mm 4 M12 14mm 14mm
SABS1123-4000/3 95mm 65mm 4 M12 14mm 14mm
Nominal Bore 20 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 90mm 65mm 4 M10 11mm 10mm
SABS1123-1000 105mm 75mm 4 M12 14mm 10mm
SABS1123-1600 105mm 75mm 4 M12 14mm 10mm
SABS1123-2500 105mm 75mm 4 M12 14mm 14mm
SABS1123-4000 105mm 75mm 4 M12 14mm 14mm
Nominal Bore 25 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 100mm 75mm 4 M10 11mm 10mm
SABS1123-1000 115mm 85mm 4 M12 14mm 10mm
SABS1123-1600 115mm 85mm 4 M12 14mm 10mm
SABS1123-2500 115mm 85mm 4 M12 14mm 16mm
SABS1123-4000 115mm 85mm 4 M12 14mm 16mm
Nominal Bore 32 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 120mm 90mm 4 M12 14mm 10mm
SABS1123-1000 140mm 100mm 4 M16 18mm 10mm
SABS1123-1600 140mm 100mm 4 M16 18mm 10mm
SABS1123-2500 140mm 100mm 4 M16 18mm 18mm
SABS1123-4000 140mm 100mm 4 M16 18mm 18mm
Nominal Bore 40 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 130mm 100mm 4 M12 14mm 10mm
SABS1123-1000 150mm 110mm 4 M16 18mm 10mm
SABS1123-1600 150mm 110mm 4 M16 18mm 10mm
SABS1123-2500 150mm 110mm 4 M16 18mm 20mm
SABS1123-4000 150mm 110mm 4 M16 18mm 20mm
Nominal Bore 50 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 140mm 110mm 4 M12 14mm 10mm
SABS1123-1000 165mm 125mm 4 M16 18mm 10mm
SABS1123-1600 165mm 125mm 4 M16 18mm 12mm
SABS1123-2500 165mm 125mm 4 M16 18mm 20mm
SABS1123-4000 165mm 125mm 4 M16 18mm 20mm
Nominal Bore 65 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 160mm 130mm 4 M12 14mm 10mm
SABS1123-1000 185mm 145mm 4 M16 18mm 12mm
SABS1123-1600 185mm 145mm 4 M16 18mm 12mm
SABS1123-2500 185mm 145mm 8 M16 18mm 22mm
SABS1123-4000 185mm 145mm 8 M16 18mm 22mm
Nominal Bore 80 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 190mm 150mm 4 M16 18mm 10mm
SABS1123-1000 200mm 160mm 8 M16 18mm 12mm
SABS1123-1600 200mm 160mm 8 M16 18mm 14mm
SABS1123-2500 200mm 160mm 8 M16 18mm 22mm
SABS1123-4000 200mm 160mm 8 M16 18mm 22mm
Nominal Bore100 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 210mm 170mm 4 M16 18mm 10mm
SABS1123-1000 220mm 180mm 8 M16 18mm 12mm
SABS1123-1600 220mm 180mm 8 M16 18mm 14mm
SABS1123-2500 235mm 190mm 8 M20 22mm 25mm
SABS1123-4000 235mm 190mm 8 M20 22mm 25mm
Nominal Bore150 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 240mm 200mm 8 M16 18mm 12mm
SABS1123-1000 250mm 210mm 8 M16 18mm 14mm
SABS1123-1600 250mm 210mm 8 M16 18mm 16mm
SABS1123-2500 270mm 220mm 8 M24 26mm 28mm
SABS1123-4000 270mm 220mm 8 M24 26mm 28mm
Nominal Bore200 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 265mm 225mm 8 M16 18mm 12mm
SABS1123-1000 285mm 240mm 8 M20 22mm 16mm
SABS1123-1600 285mm 240mm 8 M20 22mm 18mm
SABS1123-2500 300mm 250mm 8 M24 26mm 30mm
SABS1123-4000 300mm 250mm 8 M24 26mm 30mm
Nominal Bore250 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 320mm 280mm 8 M16 18mm 14mm
SABS1123-1000 340mm 295mm 8 M20 22mm 18mm
SABS1123-1600 340mm 295mm 12 M20 22mm 22mm
SABS1123-2500 360mm 310mm 12 M24 26mm 28mm
SABS1123-4000 375mm 320mm 12 M24 26mm 32mm
Nominal Bore300 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 375mm 335mm 12 M16 18mm 16mm
SABS1123-1000 395mm 350mm 12 M20 22mm 20mm
SABS1123-1600 405mm 355mm 12 M24 26mm 25mm
SABS1123-2500 425mm 370mm 12 M24 26mm 30mm
SABS1123-4000 450mm 385mm 12 M30 33mm 38mm
Nominal Bore500 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 645mm 600mm 20 M20 22mm 25mm
SABS1123-1000 670mm 620mm 20 M24 26mm 32mm
SABS1123-1600 715mm 650mm 20 M30 33mm 40mm
SABS1123-2500 730mm 660mm 20 M30 33mm 50mm
SABS1123-4000 755mm 670mm 20 M39 39mm 70mm



Dimensions & Masses SABS 1123 Flange Class 600kPa

South Africa Standard SABS/SANS 1123 FLange CLASS 600KPA Specifications

Nominal pressure 600 kPa 600/2 = Table 4 600/4 = Table 6 600/3 = Table 5 600/8 = Table 8
NB Pipe O.D.
d1 		Flange Raised Face Bolt Drilling Neck Boss
D b b1 b2 b3 h h1 d4 f No. d2 k d3 h2 r d5
10 17.2 75 8 10 8 10 16 28 35 2 M10 4 11 50 26 6 4 25
15 21.3 80 8 10 8 10 16 30 40 2 M10 4 11 55 30 6 4 30
20 26.9 90 8 10 8 10 18 32 50 2 M10 4 11 65 38 6 4 40
25 33.7 100 8 10 8 10 18 35 60 2 M10 4 11 75 42 6 4 50
32 42.4 120 8 10 8 10 20 35 70 2 M12 4 14 90 55 6 6 60
40 48.3 130 8 10 8 10 20 38 80 3 M12 4 14 100 62 7 6 70
50 60.3 140 8 10 8 10 22 38 90 3 M12 4 14 110 74 8 6 80
65 76.1 160 8 10 8 10 26 38 110 3 M12 4 14 130 88 9 6 100
80 88.9 190 10 10 10 10 28 42 128 3 M16 4 18 150 102 10 8 110
100 114.3 210 10 10 10 10 34 45 148 3 M16 4 18 170 130 10 8 130
*125 139.7 240 13 12 13 12 39 48 178 3 M16 8 18 200 155 10 8 160
150 168.3 265 13 12 13 12 39 48 202 3 M16 8 18 225 184 12 10 185
*175 193.7 295 13 14 - 14 - 52 230 3 M16 8 18 255 210 12 10 -
200 219.1 320 13 14 - 14 - 55 258 3 M16 8 18 280 236 15 10 -
*225 244.5 345 16 16 - 16 - 58 285 3 M16 8 18 305 264 15 12 -
250 273 375 16 16 - 16 - 60 312 3 M16 12 18 335 290 15 12 -
300 323.9 440 20 20 - 20 - 62 365 4 M20 12 22 395 342 15 12 -
350 355.6 490 22 22 - 22 - 62 415 4 M20 12 22 445 385 15 12 -
400 406.4 540 22 22 - 22 - 65 465 4 M20 16 22 495 438 15 12 -
450 457.2 595 24 25 - 25 - 65 520 4 M20 16 22 550 492 15 12 -
500 508 645 24 25 - 25 - 68 570 4 M20 20 22 600 538 15 12 -
550 559 705 24 28 - 28 - 68 620 5 M24 20 26 655 590 16 12 -
600 609.6 755 24 30 - 30 - 70 670 5 M24 20 26 705 640 16 12 -
* NP = Nominal Pressure 600kPa, 1000kPa, 1600kPa, 2500kPa, 4000kPa



Dimensions of SABS 1123 Class 1000 Flange

South Africa Standard SABS/SANS 1123 FLange CLASS 1000KPA Specifications

Nominal pressure 1000 kPa 1000/2 = Table 9 1000/4 = Table 11 1000/3 = Table 10 1000/8 = Table 13
NB Pipe O.D.
d1 		Flange Raised Face Bolt Drilling Neck Boss
D b b1 b2 b3 h h1 d4 f No. d2 k d3 h2 r d5
10 17.2 90 8 10 8 10 14 35 40 2 M12 4 14 60 28 6 4 30
15 21.3 95 8 10 8 10 14 35 45 2 M12 4 14 65 32 6 4 35
20 26.9 105 8 10 8 10 16 38 58 2 M12 4 14 75 40 6 4 45
25 33.7 115 8 10 8 10 16 38 68 2 M12 4 14 85 46 6 4 52
32 42.4 140 10 10 10 10 20 40 78 2 M16 4 18 100 56 6 6 60
40 48.3 150 10 10 10 10 20 42 88 3 M16 4 18 110 64 7 6 70
50 60.3 165 12 10 10 12 20 45 102 3 M16 4 18 125 75 8 6 85
65 76.1 185 12 12 12 12 26 45 122 3 M16 4 18 145 90 10 6 105
80 88.9 200 14 12 12 14 26 50 138 3 M16 8 18 160 105 10 8 118
100 114.3 220 14 12 12 14 32 52 158 3 M16 8 18 180 131 12 8 140
*125 139.7 250 16 14 14 16 36 55 188 3 M16 8 18 210 156 12 8 168
150 168.3 285 18 16 16 18 38 55 212 3 M20 8 22 240 184 12 10 195
*175 193.7 315 18 16 18 60 242 3 M20 8 22 270 210 12 10
200 219.1 340 18 18 18 62 268 3 M20 8 22 295 235 16 10
*225 244.5 370 18 18 18 62 290 3 M20 8 22 325 265 16 10
250 273.0 395 20 20 20 68 320 3 M20 12 22 350 292 16 12
300 323.9 445 22 22 22 68 370 4 M20 12 22 400 344 16 12
350 355.6 505 26 25 25 68 430 4 M20 16 22 460 385 16 12
400 406.4 565 26 25 25 72 482 4 M24 16 26 515 400 16 12
450 457.2 615 28 30 30 72 532 4 M24 20 26 565 492 16 12
500 508.0 670 28 32 32 75 585 4 M24 20 26 620 542 16 12
550 559.0 730 28 35 35 80 635 5 M24 20 26 675 592 18 12
600 609.6 780 28 38 38 80 685 5 M24 20 26 725 642 18 12
* NP = Nominal Pressure 600kPa, 1000kPa, 1600kPa, 2500kPa, 4000kPa



Dimensions of ASME SABS 1123 Class 1600 Flange

South Africa Standard SABS/SANS 1123 FLange CLASS 1600KPA Specifications



Nominal pressure 1600 kPa 1600/2 = Table 14 1600/4 = Table 16 1600/3 = Table 15 1600/8 = Table 18
NB Pipe O.D.
d1 		Flange Raised Face Bolt Drilling Neck Boss
D b b1 b2 b3 h h1 d4 f No. d2 k d3 h2 r d5
10 17.2 90 8 10 8 10 14 35 40 2 M12 4 14 60 28 6 4 30
15 21.3 95 8 10 8 10 14 35 45 2 M12 4 14 65 32 6 4 35
20 26.9 105 8 10 8 10 16 38 58 2 M12 4 14 75 40 6 4 45
25 33.7 115 8 10 8 10 16 38 68 2 M12 4 14 85 46 6 4 52
32 42.4 140 10 10 10 10 20 40 78 2 M16 4 18 100 56 6 6 60
40 48.3 150 10 10 10 10 20 42 88 3 M16 4 18 110 64 7 6 70
50 60.3 165 12 12 12 12 22 45 102 3 M16 4 18 125 75 8 6 85
65 76.1 185 12 12 12 12 26 45 122 3 M16 4 18 145 90 10 6 105
80 88.9 200 14 14 14 14 28 50 138 3 M16 8 18 160 105 10 8 118
100 114.3 220 14 14 14 14 34 52 158 3 M16 8 18 180 131 12 8 140
*125 139.7 250 16 16 16 16 38 55 188 3 M16 8 18 210 156 12 8 168
150 168.3 285 18 18 18 18 40 55 212 3 M20 8 22 240 184 12 10 195
*175 193.7 315 20 20 20 60 242 3 M20 8 22 270 210 12 10
200 219.1 340 22 22 22 62 268 3 M20 12 22 295 235 16 10
*225 244.5 370 24 22 22 66 294 3 M20 12 22 325 265 16 10
250 273.0 405 24 25 25 70 320 3 M24 12 26 355 292 16 12
300 323.9 460 28 28 28 78 378 4 M24 12 26 410 344 16 12
350 355.6 520 30 30 30 82 438 4 M24 16 26 470 390 16 12
400 406.4 580 32 35 35 85 490 4 M24 16 26 525 445 16 12
450 457.2 640 34 40 40 87 550 4 M24 20 26 585 496 16 12
500 508.0 715 34 40 40 90 610 4 M30 20 33 650 548 16 12
550 559.0 775 36 95 670 5 M30 20 33 710 600 18 12
600 609.6 840 36 50 95 725 5 M30 20 33 770 652 18 12
* NP = Nominal Pressure 600kPa, 1000kPa, 1600kPa, 2500kPa, 4000kPa



Dimensions of ASME B16.5 SABS 1123 Class 2500 Flange
Dimensions & Masses SABS 1123 Flange Class 2500kPa

South Africa Standard SABS/SANS 1123 FLange CLASS 2500KPA Specifications

Nominal pressure 2500 kPa 2500/2 = Table 19 2500/4 = Table 21 2500/3 = Table 20 2500/8 = Table 23
NB Pipe O.D.
d1 		Flange Raised Face Bolt Drilling Neck Boss
D b b1 b2 b3 h h1 d4 f No. d2 k d3 h2 r d5
10 17.2 90 12 12 10 12 16 35 40 2 M12 4 14 60 28 6 4 30
15 21.3 95 14 14 11 14 17 38 45 2 M12 4 14 65 32 6 4 35
20 26.9 105 14 14 11 14 19 40 58 2 M12 4 14 75 40 6 4 45
25 33.7 115 16 16 12 16 22 40 68 2 M12 4 14 85 46 6 4 52
32 42.4 140 18 18 14 18 26 42 78 2 M16 4 18 100 55 6 6 60
40 48.3 150 18 20 14 20 28 45 88 3 M16 4 18 110 64 7 6 70
50 60.3 165 20 20 17 20 31 48 102 3 M16 4 18 125 75 8 6 85
65 76.1 185 22 22 17 22 33 52 122 3 M16 8 18 145 90 10 6 105
80 88.9 200 24 22 18 22 34 58 138 3 M16 8 18 160 105 12 8 118
100 114.3 235 24 25 21 25 41 65 162 3 M20 8 22 190 134 12 8 145
*125 139.7 270 26 28 24 28 46 68 188 3 M24 8 26 220 162 12 8 170
150 168.3 300 28 30 24 30 48 75 218 3 M24 8 26 250 192 12 10 200
*175 193.7 330 30 30 25 75 248 3 M24 12 26 280 218 15 10
200 219.1 360 30 30 30 80 278 3 M24 12 26 310 244 16 10
*225 244.5 395 30 30 30 84 306 3 M24 12 26 340 270 16 10
250 273.0 425 30 30 30 88 335 3 M24 12 26 370 298 18 12
300 323.9 485 34 32 32 92 395 4 M24 16 26 430 352 18 12
350 355.6 555 38 35 35 100 450 4 M30 16 33 490 398 20 12
400 406.5 620 40 40 40 110 505 4 M30 16 33 550 452 20 12
450 457.2 670 42 45 45 110 555 4 M30 20 33 600 505 20 12
500 508.0 730 44 50 50 125 615 4 M30 20 33 660 558 20 12
550 559.0 785 55 670 5 M36 20 39 710
600 609.6 845 46 60 125 720 5 M36 20 39 770 660 20 12
* NP = Nominal Pressure 600kPa, 1000kPa, 1600kPa, 2500kPa, 4000kPa



Dimensions of SABS 1123 Flange
  • WN Flange: T600/2, T1000/2, T1600/2, T2500/2, T4000/2
  • Slip on Flange: T600/5, T1000/5, T1600/5, T2500/5, T4000/5
  • Plate Flange: T600/3, T1000/3, T1600/3, T2500/3, T4000/3



Dimensions & Masses SABS 1123 Flange Class 4000kP

South Africa Standard SABS/SANS 1123 FLange CLASS 4000KPA Specifications



Nominal pressure 4000 kPa 4000/2 = Table 24 4000/4 = Table 26 4000/3 = Table 25 4000/8 = Table 28
NB Pipe O.D.
d1 		Flange Raised Face Bolt Drilling Neck Boss
D b b1 b2 b3 h h1 d4 f No. d2 k d3 h2 r d5
10 17.2 90 12 12 12 12 18 35 40 2 M12 4 14 60 28 6 4 30
15 21.3 95 14 14 14 14 20 38 45 2 M12 4 14 65 32 6 4 35
20 26.9 105 14 14 14 14 22 40 58 2 M12 4 14 75 40 6 4 45
25 33.7 115 16 16 16 16 26 40 68 2 M12 4 14 85 46 6 4 52
32 42.4 140 18 18 18 18 30 42 78 2 M16 4 18 100 55 6 6 60
40 48.3 150 18 20 18 20 32 45 88 3 M16 4 18 110 64 7 6 70
50 60.3 165 20 20 20 20 34 48 102 3 M16 4 18 125 75 8 6 85
65 76.1 185 22 22 22 22 38 52 122 3 M16 8 18 145 90 10 6 105
80 88.9 200 24 22 24 22 40 58 138 3 M16 8 18 160 105 12 8 118
100 114.3 235 24 25 24 25 44 65 162 3 M20 8 22 190 134 12 8 145
*125 139.7 270 26 28 26 28 48 68 188 3 M24 8 26 220 162 12 8 170
150 168.3 300 28 30 28 30 52 75 218 3 M24 8 26 250 192 12 10 200
*175 193.7 350 32 32 32 82 260 3 M24 12 26 295 218 15 10
200 219.1 375 34 32 32 88 285 3 M24 12 26 320 244 16 10
*225 244.5 420 36 35 35 100 315 3 M30 12 33 355 275 18 12
250 273.0 450 38 38 38 105 345 3 M30 12 33 385 306 18 12
300 323.9 515 42 40 40 115 410 4 M30 16 33 450 362 18 12
350 355.6 580 46 45 45 125 465 4 M30 16 33 510 408 20 12
400 406.4 660 50 50 50 135 535 4 M36 16 39 585 462 20 12
450 457.2 685 52 60 60 140 575 4 M36 20 39 610 510 20 12
500 508.0 755 52 70 70 140 615 4 M36 20 39 670 562 20 12
550
600
* NP = Nominal Pressure 600kPa, 1000kPa, 1600kPa, 2500kPa, 4000kPa



SANS 1123 Forged and Plate Flange
SANS 1123 Flange
SANS 1123 Weld Neck Flange
SANS 1123 Socket Weld Flange
SANS 1123 Slip-On Flange
SANS 1123 Threaded Flange
SANS 1123 Lap Joint Flange
SANS 1123 Plate Flange
SANS 1123 Ring Type Joint Flange
SANS 1123 Square Flange
SANS 1123 Orifice Flange
SANS 1123 Forged Flange
SANS 1123 Blind Flange
SANS 1123 Reducing Flange



We are dedicated SABS 1123 CLASS 600 Flanges, Stainless Steel SABS 1123 Class 1000 Flanges suppliers in Mumbai, India

SABS 1123 Flange other types
SANS 1123 Threaded Reducing Flanges SANS 1123 Reducing Flanges
SANS 1123 Split Flanges 1123 SABS Reducing Flange
SANS 1123 Turbo Flanges SANS 1123 Forged Flanges
SANS 1123 Wnrf Flanges ASME SABS 1123 Reducing Flanges
SANS 1123 Slip-On Pipe Flanges 1123 SABS Blind Flange
SANS 1123 Vacuum Flanges SANS 1123 Reducing Flange
SANS 1123 Square Flanges SANS 1123 Ansi Flanges
Ansi 150 SANS 1123 Flanges SANS 1123 JIS BLRF Flanges
SANS 1123 Blank Flanges SANS 1123 Orifice Flanges
SANS 1123 Sbc Header Flanges SANS 1123 Raised Face Blind Flanges
SANS 1123 Companion Flanges 1123 SABS Orifice Flanges
SANS 1123 Class 150 Flanges SANS 1123 Duct Flanges
SANS 1123 Cover Flanges SANS 1123 Orifice Flanges
Custom SANS 1123 Flanges SANS 1123 Socket weld Flanges
SANS 1123 Reducing Flanges 1123 SABS Forged Flange
SANS 1123 Bsp Flanges ASME SABS 1123 Orifice Flanges
Class 600 SANS 1123 Flanges ASME SABS 1123 Socket weld Flanges
SANS 1123 Din Flanges 1123 SABS Socket weld Flanges
Table E SANS 1123 Flanges ASME B16.5 1123 SABS Socket weld Flanges
SANS 1123 Forged Flanges ASME SABS 1123 Threaded Flanges
Gaskets For SANS 1123 Flanges 1123 SABS Threaded Flanges
SANS 1123 Handrail Flanges SANS 1123 fastenersonline Flanges
High Pressure SANS 1123 Flanges SANS 1123 Threaded Flanges
SANS 1123 Lap Joint Flanges SANS 1123 Threaded Flanges
SANS 1123 Floor Flanges SANS 1123 Threaded Flanges
SANS 1123 Long Weld Neck Flanges SANS 1123 Long weld Neck Flanges
SANS 1123 Pipe Flanges SANS 1123 Raised Face Slip On Flanges
SANS 1123 Exhaust Flanges ASME SABS 1123 Slip On Plate Flanges
SANS 1123 Header Flanges 1123 SABS Slip On Flanges
SANS 1123 Plate Flanges SANS 1123 Pipe Flanges
SANS 1123 Backing Flanges SANS 1123 Exhaust Flanges
SANS 1123 Tube Flanges ASME SABS 1123 Header Flanges
SANS 1123 Metric Flanges ASME SABS 1123 Long weld Neck Flanges
SANS 1123 Socket Weld Flanges SANS 1123 JIS WNRF Flange
SANS 1123 Pump Flanges SANS 1123 Orifice Flanges
SANS 1123 Muffler Flanges 1123 SABS Long weld Neck Flanges
SANS 1123 Pressed Flanges SANS 1123 Ring Type Joint Flanges
SANS 1123 Puddle Flanges ASME SABS 1123 Ring Type Joint Flange
SANS 1123 Reducing Flanges JIS RTJ Flanges
SANS 1123 Raised Face Flanges SANS 1123 RTJ Flanges
SANS 1123 Ring Flanges SABS 1123 RTJ Flanges
SANS 1123 Stub End Flanges SANS 1123 Raised Face Weld Neck Flanges
SANS 1123 Pad Flanges 1123 SABS RTJ Flanges
SANS 1123 Slip On Flanges 1123 SABS Weld Neck Flange
SANS 1123 Screwed Flanges SANS 1123 Clad Flanges
SANS 1123 Shower Rod Flanges SANS 1123 Sae Flanges
Large Diameter SANS 1123 Flanges SANS 1123 SWRF Flanges
SANS 1123 Split Flanges ASME SABS 1123 Blind Flanges



ASME SABS 1123 Flanges Weight Chart

15mm (1/2") SABS Flange Weight Chart

Standard Class Diameter Bolt Circle Diameter Number of Bolts Bolt Size Diameter of Bolt Hole
AS4087 Flanges PN14 Flanges 95 67 4 M12 14
AS 2129 Flange Table C Flanges 95 67 4 13 14
Table D Flanges 95 67 4 13 14
Table E Flanges 95 67 4 13 14
Table F Flanges 95 67 4 13 14
Table H Flanges 114 83 4 16 17
Table J Flanges 114 83 4 16 17
ANSI B16.5 Flanges ANSI 150 Flanges 89 60 4 13 16
ANSI 300 Flanges 95 67 4 13 16
ANSI 600 Flanges 95 67 4 13 16
ANSI 900 Flanges 121 83 4 19 22
ANSI 1500 Flanges 121 83 4 19 22
ISO 7005 (DIN) Flange PN6 Flanges 80 55 4 M10 11
PN10 Flanges 95 65 4 M12 14
PN16 Flanges 95 65 4 M12 14
PN20 Flanges 90 60.5 4 M14 16
PN25 Flanges 95 65 4 M12 14
PN40 Flanges 95 65 4 M12 14



Special offer on:
Flange Schedule/Class
Pipe Size - Pipe Flanges
Flange Connection Type
Flange Material
Max. Pressure
ASME B16.5 Class 150
1/2"
FNPT
SABS
150 psi
ASME B16.5 Class 150
1/2"
Socket Weld
Forged SABS
275 psi
ASME B16.5 Class 150
1/2"
Welded
SABS
150 psi
ASME B16.5 Class 150
3/4"
FNPT
SABS
150 psi
ASME B16.5 Class 150
3/4"
Socket Weld
Forged SABS
275 psi
ASME B16.5 Class 150
1-1/4"
Socket Weld
Forged SABS
275 psi
ASME B16.5 Class 150
1-1/2"
Socket Weld
Forged SABS
275 psi
ASME B16.5 Class 150
2"
FNPT
SABS
150 psi
ASME B16.5 Class 150
2"
Socket Weld
Forged SABS
275 psi
ASME B16.5 Class 150
2-1/2"
Socket Weld
Forged SABS
275 psi
ASME B16.5 Class 150
3"
Socket Weld
Forged SABS
275 psi
ASME B16.5 Class 150
4"
FNPT
SABS
150 psi
ASME B16.5 Class 150
4"
Socket Weld
Forged SABS
275 psi
ASME B16.5 Class 300
1/2"
Slip On
Forged SABS
720 psi
ASME B16.5 Class 300
1/2"
Slip On
Forged SABS
720 psi
ASME B16.5 Class 300
1"
Slip On
Forged SABS
720 psi
ASME B16.5 Class 300
1"
Slip On
Forged SABS
720 psi
ASME B16.5 Class 300
1-1/4"
FNPT
Forged SABS
720 psi
ASME B16.5 Class 300
1-1/4"
Slip On
Forged SABS
720 psi
ASME B16.5 Class 300
1-1/2"
Slip On
Forged SABS
720 psi
ASME B16.5 Class 300
1-1/2"
Slip On
Forged SABS
720 psi
ASME B16.5 Class 300
2"
Slip On
Forged SABS
720 psi
ASME B16.5 Class 300
2"
Slip On
Forged SABS
720 psi
ASME B16.5 Class 300
2-1/2"
Slip On
Forged SABS
720 psi
ASME B16.5 Class 300
2-1/2"
Slip On
Forged SABS
720 psi
ASME B16.5 Class 300
3"
Slip On
Forged SABS
720 psi
ASME B16.5 Class 300
3"
Slip On
Forged SABS
720 psi
ASME B16.5 Class 300
4"
Slip On
Forged SABS
720 psi
ASME B16.5 Class 300
4"
Slip On
Forged SABS
720 psi
View Sabs 1123 Flange Specifications and sans 1123 flange dimensions
sans 1123 table 1600/3, India’s Largest Manufacturer of Sabs 1123 Flange Tables, sans 1123 t1000 in mumbai, India



Buttweld Fittings
