Gost 12820-80 Flange Dimensions

Russian-made Gost flange is a type of flange. The term "GOST" refers to a group of technical standards that have been upheld by the Commonwealth of Independent States (CIS) and the Euro-Asian Council for Standardization, Metrology and Certification (EASC), two regional standards organisations (CIS). The GOST contains a variety of regulated standards, with examples ranging from recipes and the nutritional information of brands popular in the Soviet era to charting guidelines for design documentation, such the GOST 12821-80 Threaded Flanges.

Table of Content

GOST Blind Flange, Gost 12815 Flanges at discounted prices, buy large or small quantity Gost 12821 Flanges

In the nations under the control of standards, the GOST concept is significant and well-known. The GOST 12821-80 Stainless Steel Flanges comprise Steel Butt-Welded Flanges, Blind Flanges (GOST12836-67), Plate Flanges, Welding Neck Flanges, and more. These GOST 12821-80 Carbon Steel Flanges are available in sizes DN15 to DN1600. The Gost 12820-80 Flange is not only offered in these sizes but also in a variety of styles or shapes, including plate flange, blind flange, welding neck flange, slide on welding plate flange, and steel butt-welded flanges.

Depending on the application, these Flange Gost 12820 forms or types are employed. The GOST 12821-80 RTJ Flanges are typically used in sectors including electric power, natural gas, shipbuilding, offshore oil and gas, and pipeline projects. Carbon steel (for example, A105, SS400, SF440 RST37.2, S235JRG2, P250GH, C22.8), stainless steel (for example, F304, F304L, F316, F316L, 316Ti), alloys like copper, nickel, titanium, brass, Hastelloy, Monel, etc. are among the materials used to make Gost 12821 Flanges. It's vital to remember that the GOST Blind Flange's characteristics, such as its strength or resistance to corrosion, depend on the material and surface treatment that are used to create the Gost 12815 Flanges.

Gost Standard Flange 12820-80 are most frequently available in screwed, forged, threaded, or plate forms. These Gost 33259 Flange shapes are often readily accessible in the market. For example, the standard for Plate Flanges is GOST12820-80, the standard for Blind Flanges is GOST12836-67, the standard for Welding Neck Flanges is GOST12821-80, and the standard for Steel Butt-Welded Flanges is GOST12821-80.

The Gost 12815 Flange has a nominal pressure range of PN6 Mpa, PN10 Mpa, PN16 Mpa, PN25 Mpa, PN40 Mpa, PN64 Mpa, PN100 Mpa, and PN160 Mpa. The packaging for Gost 12820-80 Flange Dimensions items is typically supplied in a wooden case, a wooden pallet, or a fumigated plywood.

The GOST 12821-80 Slip On Flanges' surfaces are treated by being painted with anti-rust paint or anti-rust oil. The GOST 12821-80 Blind Flanges may also receive a thin zinc film applied to their surface by plating them with transparent, yellow, or black zinc. Or by using the Gost 33259 Flange to Hot dipped Galvanizion technique to apply a thicker layer of zinc on it. According to client preference or the application for which the GOST 12820 80 Flanges will be used, surface coating is an option.

We have a huge selection of Gost 33259 Flange, Flange Gost 12820 at low prices in india, Check Gost Standard Flange Dimension

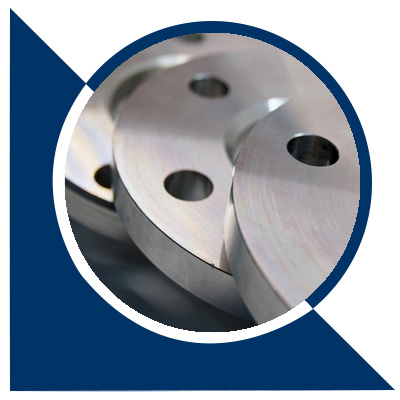

12820 GOST Flanges
12820 GOST Flanges

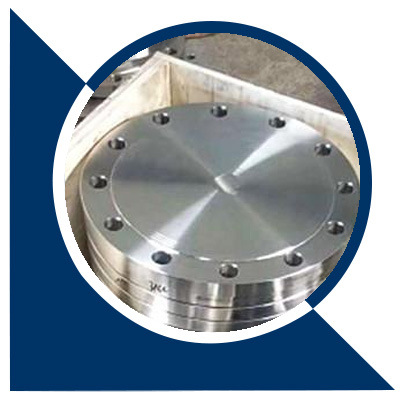

GOST 12815 Blind Flange
GOST 12815 Blind Flange

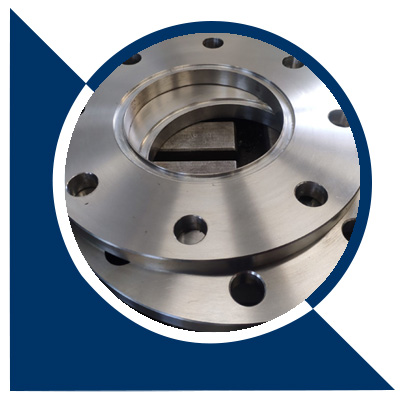

ASME GOST 12815 Pipe Flanges
ASME GOST 12815 Pipe Flanges



Specification and Standards of GOST 12815 Flanges
Specifications GOST Flanges
GOST Flange Standards ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges.
ASME B16.5 GOST Flange size range 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
GOST Flange Standard DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
GOST Flange Standard ANSI Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
GOST Flange Standard UNI 6Bar 10Bar 16Bar 25Bar 40Bar
GOST Flange Standard EN 6Bar 10Bar 16Bar 25Bar 40Bar
GOST Flange Standard GOST 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
Main Types Forged / Threaded / Screwed / Plate
Flange supporting material Gasket, Ring Joint, Flange Bolts
Most common types of GOST Flanges
  • Socket Weld Ring Flange (SWRF), GOST
  • Threaded Ring Flange, GOST
  • Blind Ring Flange (BLRF), GOST
  • Weld Neck Ring Flange (WNRF), GOST
  • Slip-On Ring Flange (SORF), GOST
  • Ring Type Joint Flange (RTJF), GOST
  • Lap Joint Ring Flange (LJRF), GOST
Connect Type/ Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove
GOST Pipe Flanges Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Production technique
  • Forged, Heat treated and machined
Special design

As per your drawing

AS, ANSI, BS, DIN and GOST
15 NB (1/2") to 200 NB (8")
Equal and Reducing Configurations

GOST Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange
Specialized manufacturer of
  • DIN 2566 en 1092 1
  • Pn16 Flange
  • DIN 2566 pn16
  • Rtj Flange
  • GOST Sorf Flange
  • GOST Table Flanges
  • DIN 2566 pn10
  • GOST Large Diameter Flange
  • GOST Threaded Flanges
  • GOST Blind Flanges
  • GOST Plate Flanges
  • GOST Weld Neck Flanges
  • GOST Loose Flanges
  • GOST Orifice Flanges
  • GOST Slip-On Flanges
  • GOST Lap Joint Flanges
  • GOST Socketweld Flanges
  • GOST AS 4087 Water Flanges
Test Hydrostatic testing machine, Direct-reading Spectrograph,UI trasonic flaw detector, X-ray detector, Magnetic particle detector
Equipment Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc
Origin West Europe /Indian / USA / Japan / Korean
GOST 12815 Flanges Standard

ANSI DIN, GOST, GOST, UNI, BS, AS2129, AWWA, EN, GOST, NFE etc.
BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, GOST/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange

  • AS 2129: Table D; Table E; Table H
  • B.S: BS4504 , BS3293, BS1560, BS10
  • ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
  • ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
  • American standard (ANSI)
  • ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
  • British standard (BS)
  • German (DIN)
  • Any other specilised flanges
  • The other standard: AWWA C207; EN1092-1, GOST12820, GOST 12815; KS B1503, GOST1123; NFE29203;UNI2276
  • DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638
Key markets and industries for GOST Flange
  • Nuclear power (mostly seamless).
  • Heavy oil refineries.
  • Bitumen upgraders.
  • Petrochemicals and acids.
Export to Indonesia, Ireland, Ukraine, Singapore,Saudi Arabia,Canada, Peru, Dubai, Brazil, Iran, Korea, USA, India, Egypt, Thailand, Spain, Oman etc
GOST 12815 Flanges Application
  • To Connect Pipe & Tubes in Power, Petroleum,Construction, Chemical, Gas, Shipbuilding,Metallurgy, etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175



GOST 12815 Flanges manufacturers in India
GOST 12815 Orifice Flange
GOST 12815 Orifice Flange
GOST Grade 12815 Square Flanges
GOST Grade 12815 Square Flanges
ГОСТ 1123 Nipo flange
ГОСТ 1123 Nipo flange
12815 GOST Spade Flange
12815 GOST Spade Flange
GOST 12815 Reducing Flange
GOST 12815 Reducing Flange
ГОСТ 12820 Ring Type Joint Flanges (RTJ)
ГОСТ 12820 Ring Type Joint Flanges (RTJ)
ASME B16.5 12815 GOST Plate Flanges
ASME B16.5 12815 GOST Plate Flanges
12815 GOST Tongue & Groove Flanges
12815 GOST Tongue & Groove Flanges
ГОСТ 12820 Weld Neck Flanges
ГОСТ 12820 Weld Neck Flanges
12815 GOST Socket Weld Flanges
12815 GOST Socket Weld Flanges
GOST 12815 Slip On Flanges
GOST 12815 Slip On Flanges
ASME B16.5 GOST 12815 Blind Flanges
ASME B16.5 GOST 12815 Blind Flanges
GOST 12815 Bleed Rings Flange
GOST 12815 Bleed Rings Flange
ASME B16.5 12815 GOST High Hub Blind Flange
ASME B16.5 12815 GOST High Hub Blind Flange
ASME GOST Grade 12815 Spacer Flange
ASME GOST Grade 12815 Spacer Flange
ГОСТ 12820 Forged Flanges
ГОСТ 12820 Forged Flanges
GOST 12815 Puddle Flanges
GOST 12815 Puddle Flanges
ASME B16.5 12815 GOST Raised Face Flanges
ASME B16.5 12815 GOST Raised Face Flanges
ГОСТ 12820 Weldoflange
ГОСТ 12820 Weldoflange
12815 GOST Male & Female Flanges
12815 GOST Male & Female Flanges
12815 GOST Spectacle Blind Flanges
12815 GOST Spectacle Blind Flanges
ГОСТ 12820 Lap Joint Flanges
ГОСТ 12820 Lap Joint Flanges
ASME GOST 12815 Threaded Flange
ASME GOST 12815 Threaded Flange
ASME B16.5 12815 GOST Long Weld Neck Flanges
ASME B16.5 12815 GOST Long Weld Neck Flanges



GOST 12815 Pipe Flange Pressure Ratings

GOST 12815 Flanges Flange Standards / Types and Pressure Class :

ASME/ANSI B 16.36 Welding Neck Flange, Slip on Flange, Threaded Flange
PRESSURE CLASS 300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.5 Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.47 Welding Neck Flange, Blind Flange [Series A & B]
PRESSURE CLASS 75, 150, 300, 400, 600, 900
BS 4504 SEC 3.1 Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange
PRESSURE CLASS PN 2.5 TO PN 40
BS 4504[PART 1] Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange
PRESSURE CLASS PN 2.5 TO PN 400
BS 1560 BOSS Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
BS10 Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange
TABLE D, E, F, H
DIN FLANGES DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673
PRESSURE CLASS PN 6 TO PN 100



GOST/ГОСТ 12820-80 FLANGE PN1.0MPA FORGED
Давление PN = 1,0 МПа (10 кгс/с м²)
Наименование
D, мм
D1, мм
dв, мм
b, мм
d, мм
отв., шт.
Масса, кг.
Фланец плоский ГОСТ 12820-80 (01) 1-15-10 ст.3 (20)
95
65
19
10
14
4
0,51
Фланец плоский ГОСТ 12820-80 (01) 1-20-10 ст.3 (20)
105
75
26
12
0,74
Фланец плоский ГОСТ 12820-80 (01) 1-25-10 ст.3 (20)
115
85
33
12
0,89
Фланец плоский ГОСТ 12820-80 (01) 1-32-10 ст.3 (20)
135
100
39
14
18
1,4
Фланец плоский ГОСТ 12820-80 (01) 1-40-10 ст.3 (20)
145
110
46
15
1,71
Фланец плоский ГОСТ 12820-80 (01) 1-50-10 ст.3 (20)
160
125
59
15
2,06
Фланец плоский ГОСТ 12820-80 (01) 1-65-10 ст.3 (20)
180
145
78
17
2,8
Фланец плоский ГОСТ 12820-80 (01) 1-80-10 ст.3 (20)
195
160
91
17
3,19
Фланец плоский ГОСТ 12820-80 (01) 1-100-10 ст.3 (20)
215
180
110
19
8
3,96
Фланец плоский ГОСТ 12820-80 (01) 1-125-10 ст.3 (20)
245
210
135
21
5,4
Фланец плоский ГОСТ 12820-80 (01) 1-150-10 ст.3 (20)
280
240
161
21
22
6,62
Фланец плоский ГОСТ 12820-80 (01) 1-200-10 ст.3 (20)
335
295
222
21
8,05
Фланец плоский ГОСТ 12820-80 (01) 1-250-10 ст.3 (20)
390
350
273
23
12
10,65
Фланец плоский ГОСТ 12820-80 (01) 1-300-10 ст.3 (20)
440
400
325
24
12,9
Фланец плоский ГОСТ 12820-80 (01) 1-350-10 ст.3 (20)
500
460
377
24
16
15,85
Фланец плоский ГОСТ 12820-80 (01) 1-400-10 ст.3 (20)
565
515
426
26
26
21,56
Фланец плоский ГОСТ 12820-80 (01) 1-500-10 ст.3 (20)
670
620
530
28
20
27,7
Фланец плоский ГОСТ 12820-80 (01) 1-600-10 ст.3 (20)
780
725
630
31
30
39,4
Фланец плоский ГОСТ 12820-80 (01) 1-800-10 ст.3 (20)
1010
950
820
37
33
24
79,16
Фланец плоский ГОСТ 12820-80 (01) 1-1000-10 ст.3 (20)
1220
1160
1020
43
28
118,43
Фланец плоский ГОСТ 12820-80 (01) 1-1200-10 ст.3 (20)
1455
1380
1220
51
39
32
197,44



Проход условный Dy
Py 1,0 МПа (10 кгс/см2)
dн
dв
b
Масса, кг
с соединительным выступом
с выступом
с впадиной
10
14
15
10
0,46
0,46
0,44
15
18
19
0,51
0,51
0,49
20
25
26
12
0,74
0,75
0,71
25
32
33
0,89
0,89
0,84
32
38
39
14
1,40
1,39
1,34
40
45
46
15
1,71
1,72
1,67
50
57
59
2,06
2,03
1,99
65
76
78
17
2,80
2,77
2,69
80
89
91
3,19
3,13
3,08
100
108 (А)
110
19
3,96
3,94
3,76
114 (Б)
116
3,81
3,76
3,61
125
133 (А)
135
21
5,40
5,38
5,18
140 (Б)
142
5,15
5,08
4,93
150
152 (А)
154
6,92
6,97
6,62
159 (Б)
161
6,62
6,62
6,33
168 (В)
170
6,24
6,17
5,95
(175)
194
196
7,32
7,31
7,02
200
219
222
8,05
8,04
7,71
(225)
245
245
9,30
9,30
9,05
250
273
273
23
10,65
10,66
10,22
300
325
325
24
12.90
12,89
12,21
350
377
377
15,85
15,79
14,96
400
426
426
26
21,56
21,51
20,49
(450)
480
480
22,76
22,68
21,67
500
530
530
28
22,70
28,02
26,86
600
630
630
31
39,40
39,26
37,48
(700)
720
720
34
59,46
58,58
56,45
800
820
820
37
79,16
77,89
76,08
(900)
920
920
40
94,13
-
-
1000
1020
1020
43
118,43
1200
1220
1222
51
197,44
1400
1420
1420
60
278,92
1600
1620
1620
70
422,65



GOST/ГОСТ 12820-80 FLANGE PN1.6MPA FORGED
Давление PN = 1,6 МПа (16 кгс/с м²)
Наименование
D, мм
D1, мм
dв, мм
b, мм
d, мм
отв., шт.
Масса, кг
Фланец плоский ГОСТ 12820-80 (01) 1-15-16 ст.3 (20)
95
65
19
12
14
4
0,61
Фланец плоский ГОСТ 12820-80 (01) 1-20-16 ст.3 (20)
105
75
26
14
0,86
Фланец плоский ГОСТ 12820-80 (01) 1-25-16 ст.3 (20)
115
85
33
16
1,17
Фланец плоский ГОСТ 12820-80 (01) 1-32-16 ст.3 (20)
135
100
39
16
18
1,58
Фланец плоский ГОСТ 12820-80 (01) 1-40-16 ст.3 (20)
145
110
46
17
1,96
Фланец плоский ГОСТ 12820-80 (01) 1-50-16 ст.3 (20)
160
125
59
19
2,58
Фланец плоский ГОСТ 12820-80 (01) 1-65-16 ст.3 (20)
180
145
78
21
3,42
Фланец плоский ГОСТ 12820-80 (01) 1-80-16 ст.3 (20)
195
160
91
21
3,71
Фланец плоский ГОСТ 12820-80 (01) 1-100-16 ст.3 (20)
215
180
110
23
8
4,73
Фланец плоский ГОСТ 12820-80 (01) 1-125-16 ст.3 (20)
245
210
135
25
6,38
Фланец плоский ГОСТ 12820-80 (01) 1-150-16 ст.3 (20)
280
240
161
25
22
7,81
Фланец плоский ГОСТ 12820-80 (01) 1-200-16 ст.3 (20)
335
295
222
27
12
10,1
Фланец плоский ГОСТ 12820-80 (01) 1-250-16 ст.3 (20)
405
355
273
28
26
14,49
Фланец плоский ГОСТ 12820-80 (01) 1-300-16 ст.3 (20)
460
410
325
28
17,78
Фланец плоский ГОСТ 12820-80 (01) 1-350-16 ст.3 (20)
520
470
377
30
16
22,88
Фланец плоский ГОСТ 12820-80 (01) 1-400-16 ст.3 (20)
580
525
426
34
30
31
Фланец плоский ГОСТ 12820-80 (01) 1-500-16 ст.3 (20)
710
650
530
44
33
20
57,01
Фланец плоский ГОСТ 12820-80 (01) 1-600-16 ст.3 (20)
840
770
630
45
39
80,03
Фланец плоский ГОСТ 12820-80 (01) 1-800-16 ст.3 (20)
1020
950
820
49
24
104,41
Фланец плоский ГОСТ 12820-80 (01) 1-1000-16 ст.3 (20)
1255
1170
1020
58
45
28
179,37
Фланец плоский ГОСТ 12820-80 (01) 1-1200-16 ст.3 (20)
1485
1390
1220
71
52
32
297,78



Проход условный Dy Py 1,6 МПа (16 кгс/см2)
dн dв b Масса, кг
с соединительным выступом с выступом с впадиной
10 14 15 12 0,54 0,54 0,53
15 18 19 0,61 0,61 0,58
20 25 26 14 0,86 0,86 0,83
25 32 33 16 1,17 1,17 1,13
32 38 39 1,58 1,58 1,53
40 45 46 17 1,96 1,93 1,89
50 57 59 19 2,58 2,54 2,50
65 76 78 21 3,42 3,38 3,30
80 89 91 3,71 3,71 3,70
100 108 (А) 110 23 4,73 4,72 4,53
114 (Б) 116 4,55 4,51 4,35
125 133 (А) 135 25 6,38 6,38 6,15
140 (Б) 142 6,08 6,03 5,85
150 152 (А) 154 8,16 8,21 7,87
159 (Б) 161 7,81 7,81 7,52
168 (В) 170 7,36 7,29 7,07
(175) 194 196 8,64 8,63 8,34
200 219 222 27 10,10 10,21 9,88
(225) 245 245 11,70 12,08 11,66
250 273 273 28 14,49 14,48 14,06
300 325 325 17,78 17,59 17,12
350 377 377 30 22,88 22,65 21,99
400 426 426 34 31,00 30,76 29,94
(450) 480 480 38 39,64 39,08 38,55
500 530 530 44 57,01 56,17 55,74
600 630 630 45 80,03 79,03 78,80
(700) 720 720 47 84,21 84,34 83,06
800 820 820 49 104,41 103,15 101,34
(900) 920 920 54 128,60 - -
1000 1020 1020 58 179,37
1200 1220 1220 71 297,78



GOST 12815 Forged and Plate Flange
GOST 12815 Flange
GOST 12815 Weld Neck Flange
GOST 12815 Socket Weld Flange
GOST 12815 Ring Type Joint Flange
GOST 12815 Square Flange
GOST 12815 Orifice Flange
GOST 12815 Forged Flange
GOST 12815 Slip-On Flange
GOST 12815 Threaded Flange
GOST 12815 Lap Joint Flange
GOST 12815 Plate Flange
GOST 12815 Blind Flange
GOST 12815 Reducing Flange



ГОСТ 12820 Flanges Weight Chart

15mm (1/2") GOST Flange Weight Chart

Standard
Class
Diameter
Bolt Circle Diameter
Number of Bolts
Bolt Size
Diameter of Bolt Hole
AS4087 Flanges
PN14 Flanges
95
67
4
M12
14
AS 2129 Flange
Table C Flanges
95
67
4
13
14
Table D Flanges
95
67
4
13
14
Table E Flanges
95
67
4
13
14
Table F Flanges
95
67
4
13
14
Table H Flanges
114
83
4
16
17
Table J Flanges
114
83
4
16
17
ANSI B16.5 Flanges
ANSI 150 Flanges
89
60
4
13
16
ANSI 300 Flanges
95
67
4
13
16
ANSI 600 Flanges
95
67
4
13
16
ANSI 900 Flanges
121
83
4
19
22
ANSI 1500 Flanges
121
83
4
19
22
ISO 7005 (DIN) Flange
PN6 Flanges
80
55
4
M10
11
PN10 Flanges
95
65
4
M12
14
PN16 Flanges
95
65
4
M12
14
PN20 Flanges
90
60.5
4
M14
16
PN25 Flanges
95
65
4
M12
14
PN40 Flanges
95
65
4
M12
14





Dimensions of GOST 12820 Pipe Flange

Dimensions & Masses of GOST 12820-80 Flange PN0.6MPa

Давление PN = 0,6 МПа (6 кгс/с м²)
Наименование
D, мм
D1, мм
dв, мм
b, мм
d, мм
отв., шт.
Масса, кг.
Фланец плоский ГОСТ 12820-80 (01) 1-15-6 ст.3 (20)
80
55
19
10
11
4
0,33
Фланец плоский ГОСТ 12820-80 (01) 1-20-6 ст.3 (20)
90
65
26
12
0,53
Фланец плоский ГОСТ 12820-80 (01) 1-25-6 ст.3 (20)
100
75
33
12
0,64
Фланец плоский ГОСТ 12820-80 (01) 1-32-6 ст.3 (20)
120
90
39
13
14
1,01
Фланец плоский ГОСТ 12820-80 (01) 1-40-6 ст.3 (20)
130
100
46
13
1,21
Фланец плоский ГОСТ 12820-80 (01) 1-50-6 ст.3 (20)
140
110
59
13
1,33
Фланец плоский ГОСТ 12820-80 (01) 1-65-6 ст.3 (20)
160
130
78
13
1,63
Фланец плоский ГОСТ 12820-80 (01) 1-80-6 ст.3 (20)
185
150
91
15
18
2,44
Фланец плоский ГОСТ 12820-80 (01) 1-100-6 ст.3 (20)
205
170
110
15
2,85
Фланец плоский ГОСТ 12820-80 (01) 1-125-6 ст.3 (20)
235
200
135
17
8
3,88
Фланец плоский ГОСТ 12820-80 (01) 1-150-6 ст.3 (20)
260
225
161
17
4,39
Фланец плоский ГОСТ 12820-80 (01) 1-200-6 ст.3 (20)
315
280
222
19
5,89
Фланец плоский ГОСТ 12820-80 (01) 1-250-6 ст.3 (20)
370
335
273
20
12
7,67
Фланец плоский ГОСТ 12820-80 (01) 1-300-6 ст.3 (20)
435
395
325
20
22
10,28
Фланец плоский ГОСТ 12820-80 (01) 1-350-6 ст.3 (20)
485
445
377
22
12,58
Фланец плоский ГОСТ 12820-80 (01) 1-400-6 ст.3 (20)
535
495
426
24
16
15,2
Фланец плоский ГОСТ 12820-80 (01) 1-500-6 ст.3 (20)
640
600
530
25
19,72
Фланец плоский ГОСТ 12820-80 (01) 1-600-6 ст.3 (20)
755
705
630
25
26
20
26,24
Фланец плоский ГОСТ 12820-80 (01) 1-800-6 ст.3 (20)
975
920
820
27
30
24
46,14
Фланец плоский ГОСТ 12820-80 (01) 1-1000-6 ст.3 (20)
1 175
1 120
1 020
31
28
64,36
Фланец плоский ГОСТ 12820-80 (01) 1-1200-6 ст.3 (20)
1 400
1 340
1 220
34
33
32
99,03



Проход условный Dy
Py 0,6 МПа (6 кгс/см2)
dн
dв
b
Масса, кг
с соединительным выступом
с выступом
с впадиной
10
14
15
10
0,31
0,31
0,30
15
18
19
0,33
0,33
0,32
20
25
26
12
0,53
0,53
0,51
25
32
33
0,64
0,64
0,62
32
38
39
13
1,01
1,02
0,98
40
45
46
1,21
1,19
1,16
50
57
59
1,33
1,30
1,27
65
76
78
1,63
1,60
1,55
80
89
91
15
2,44
2,40
2,35
100
108 (А)
110
2,85
2,81
2,72
114 (Б)
116
2,73
2,66
2,60
125
133 (А)
135
17
3,88
3,84
3,70
140 (Б)
142
3,68
3,59
3,50
150
152 (А)
154
4,63
4,65
4,43
159 (Б)
161
4,39
4,36
4,19
168 (В)
170
4,09
3,98
3,89
(175)
194
196
19
5,36
5,33
5,14
200
219
222
5,89
5,86
5,65
(225)
245
245
6,60
6,60
6,29
250
273
273
20
7,67
7,64
7,34
300
325
325
10,28
10,18
9,74
350
377
377
22
12,58
12,45
12,00
400
426
426
24
15,20
15,07
14,53
(450)
480
480
17,25
17,04
16,52
500
530
530
25
19,72
19,57
18,86
600
630
630
26,24
25,91
24,96
(700)
720
720
27
36,68
36,27
35,28
800
820
820
46,14
45,66
43,65
(900)
920
920
29
55,10
-
-
1000
1020
1020
31
64,36
1200
1220
1220
34
99,03
1400
1420
1420
43
161,45
1600
1620
1620
48
203,05



Dimensions & Masses of GOST 12820-80 Flange PN2.5MPa
Давление PN = 2,5 МПа (25 кгс/с м²)
Наименование
D, мм
D1, мм
dв, мм
b, мм
d, мм
отв., шт.
Масса, кг
Фланец плоский ГОСТ 12820-80 (01) 1-15-25 ст.3 (20)
95
65
19
14
14
4
0,7
Фланец плоский ГОСТ 12820-80 (01) 1-20-25 ст.3 (20)
105
75
26
16
1
Фланец плоский ГОСТ 12820-80 (01) 1-25-25 ст.3 (20)
115
85
33
16
1,2
Фланец плоский ГОСТ 12820-80 (01) 1-32-25 ст.3 (20)
135
100
39
18
18
1,8
Фланец плоский ГОСТ 12820-80 (01) 1-40-25 ст.3 (20)
145
110
46
19
2,2
Фланец плоский ГОСТ 12820-80 (01) 1-50-25 ст.3 (20)
160
125
59
21
2,7
Фланец плоский ГОСТ 12820-80 (01) 1-65-25 ст.3 (20)
180
145
78
21
8
3,2
Фланец плоский ГОСТ 12820-80 (01) 1-80-25 ст.3 (20)
195
160
91
23
4,1
Фланец плоский ГОСТ 12820-80 (01) 1-100-25 ст.3 (20)
230
190
110
25
22
5,9
Фланец плоский ГОСТ 12820-80 (01) 1-125-25 ст.3 (20)
270
220
135
27
26
8,3
Фланец плоский ГОСТ 12820-80 (01) 1-150-25 ст.3 (20)
300
250
161
27
10,1
Фланец плоский ГОСТ 12820-80 (01) 1-200-25 ст.3 (20)
360
310
222
29
12
13,3
Фланец плоский ГОСТ 12820-80 (01) 1-250-25 ст.3 (20)
425
370
273
31
30
18,9
Фланец плоский ГОСТ 12820-80 (01) 1-300-25 ст.3 (20)
485
430
325
32
16
23,9
Фланец плоский ГОСТ 12820-80 (01) 1-350-25 ст.3 (20)
550
490
377
38
33
34,4
Фланец плоский ГОСТ 12820-80 (01) 1-400-25 ст.3 (20)
610
550
426
40
44,6
Фланец плоский ГОСТ 12820-80 (01) 1-500-25 ст.3 (20)
730
660
530
48
39
20
67,3
Фланец плоский ГОСТ 12820-80 (01) 1-600-25 ст.3 (20)
840
770
630
49
90,87
Фланец плоский ГОСТ 12820-80 (01) 1-800-25 ст.3 (20)
1075
990
820
63
45
24
181,43



Проход условный Dy
Py 2,5 МПа (25 кгс/см2)
dн
dв
b
Масса, кг
с соединительным выступом
с выступом
с впадиной
10
14
15
14
0,63
0,64
0,61
15
18
19
0,70
0,71
0,68
20
25
26
16
0,98
0,97
0,94
25
32
33
1,17
1,17
1,13
32
38
39
18
1,77
1,76
1,72
40
45
46
19
2,18
2,15
2,11
50
57
59
21
2,71
2,80
2,76
65
76
78
3,22
3,21
3,14
80
89
91
23
4,06
4,00
3,95
100
108 (А)
110
25
5,92
5,89
5,72
114 (Б)
116
5,72
5,66
5,52
125
133 (А)
135
27
8,26
8,25
8,23
140 (Б)
142
7,94
8,07
7,91
150
152 (А)
154
10,51
10,50
10,22
159 (Б)
161
10,12
10,07
9,83
168 (В)
170
9,63
9,51
9,34
(175)
194
196
29
11,49
11,43
11,19
200
219
222
13,34
13,24
13,01
(225)
245
245
31
16,93
16,82
16,52
250
273
273
18,90
18,78
18,52
300
325
325
32
23,95
23,53
23,29
350
377
377
38
34,35
34,57
34,18
400
426
426
40
44,62
44,01
43,56
(450)
480
480
44
51,80
51,10
50,71
500
530
530
48
67,30
66,63
66,36
600
630
630
49
90,87
89,13
88,91
(700)
720
720
55
126,82
124,92
124,11
800
820
820
63
181,43
174,52
174,15



Most trusted and reliable GOST 12821-80 Stainless Steel Flanges, GOST 12821-80 Carbon Steel Flanges suppliers in Mumbai, India

GOST 12815 Flange other types
ГОСТ 12820 Vacuum Flanges
ГОСТ 12820 Reducing Flange
ГОСТ 12820 Wnrf Flanges
ASME GOST 12815 Reducing Flanges
ГОСТ 12820 Threaded Reducing Flanges
ГОСТ 12820 Reducing Flanges
ГОСТ 12820 Turbo Flanges
ГОСТ 12820 Forged Flanges
ГОСТ 12820 Square Flanges
ГОСТ 12820 Ansi Flanges
ГОСТ 12820 Reducing Flanges
12815 GOST Forged Flange
ГОСТ 12820 Split Flanges
ASME GOST 12815 Blind Flanges
ГОСТ 12820 Companion Flanges
12815 GOST Orifice Flanges
ГОСТ 12820 Split Flanges
12815 GOST Reducing Flange
ГОСТ 12820 Slip-On Pipe Flanges
12815 GOST Blind Flange
Ansi 150 ГОСТ 12820 Flanges
ГОСТ 12820 JIS BLRF Flanges
ГОСТ 12820 Blank Flanges
ГОСТ 12820 Orifice Flanges
ГОСТ 12820 Class 150 Flanges
ГОСТ 12820 Duct Flanges
ГОСТ 12820 Cover Flanges
ГОСТ 12820 Orifice Flanges
ГОСТ 12820 Forged Flanges
ASME GOST 12815 Threaded Flanges
Custom ГОСТ 12820 Flanges
ГОСТ 12820 Socket weld Flanges
Class 600 ГОСТ 12820 Flanges
ASME GOST 12815 Socket weld Flanges
ГОСТ 12820 Din Flanges
12815 GOST Socket weld Flanges
ГОСТ 12820 Bsp Flanges
ASME GOST 12815 Orifice Flanges
Large Diameter ГОСТ 12820 Flanges
ГОСТ 12820 SWRF Flanges
ГОСТ 12820 Floor Flanges
ГОСТ 12820 Threaded Flanges
Gaskets For ГОСТ 12820 Flanges
12815 GOST Threaded Flanges
ГОСТ 12820 Handrail Flanges
ГОСТ 12820 fastenersonline Flanges
High Pressure ГОСТ 12820 Flanges
ГОСТ 12820 Threaded Flanges
ГОСТ 12820 Lap Joint Flanges
ГОСТ 12820 Threaded Flanges
ГОСТ 12820 Pipe Flanges
ГОСТ 12820 Raised Face Slip On Flanges
ГОСТ 12820 Header Flanges
12815 GOST Slip On Flanges
ГОСТ 12820 Long Weld Neck Flanges
ГОСТ 12820 Long weld Neck Flanges
ГОСТ 12820 Plate Flanges
ГОСТ 12820 Pipe Flanges
ГОСТ 12820 Exhaust Flanges
ASME GOST 12815 Slip On Plate Flanges
ГОСТ 12820 Backing Flanges
ГОСТ 12820 Exhaust Flanges
ГОСТ 12820 Tube Flanges
ASME GOST 12815 Header Flanges
ГОСТ 12820 Shower Rod Flanges
ГОСТ 12820 Sae Flanges
ГОСТ 12820 Slip On Flanges
12815 GOST Weld Neck Flange
ГОСТ 12820 Metric Flanges
ASME GOST 12815 Long weld Neck Flanges
ГОСТ 12820 Pressed Flanges
ГОСТ 12820 Ring Type Joint Flanges
ГОСТ 12820 Pad Flanges
12815 GOST RTJ Flanges
ГОСТ 12820 Reducing Flanges
JIS RTJ Flanges
ГОСТ 12820 Raised Face Flanges
ГОСТ 12820 RTJ Flanges
ГОСТ 12820 Ring Flanges
GOST 12815 RTJ Flanges
ГОСТ 12820 Puddle Flanges
ASME GOST 12815 Ring Type Joint Flange
ГОСТ 12820 Screwed Flanges
ГОСТ 12820 Clad Flanges
ГОСТ 12820 Socket Weld Flanges
ГОСТ 12820 JIS WNRF Flange
Table E ГОСТ 12820 Flanges
ASME B16.5 12815 GOST Socket weld Flanges
ГОСТ 12820 Stub End Flanges
ГОСТ 12820 Raised Face Weld Neck Flanges
ГОСТ 12820 Muffler Flanges
12815 GOST Long weld Neck Flanges
ГОСТ 12820 Sbc Header Flanges
ГОСТ 12820 Raised Face Blind Flanges
ГОСТ 12820 Pump Flanges
ГОСТ 12820 Orifice Flanges



Special offer on:
Flange Schedule/Class
Pipe Size - Pipe Flanges
Flange Connection Type
Flange Material
Max. Pressure
ASME B16.5 Class 150
1/2"
FNPT
GOST
150 psi
ASME B16.5 Class 150
1/2"
Socket Weld
Forged GOST
275 psi
ASME B16.5 Class 150
1/2"
Welded
GOST
150 psi
ASME B16.5 Class 150
3/4"
FNPT
GOST
150 psi
ASME B16.5 Class 150
3/4"
Socket Weld
Forged GOST
275 psi
ASME B16.5 Class 150
1-1/4"
Socket Weld
Forged GOST
275 psi
ASME B16.5 Class 150
1-1/2"
Socket Weld
Forged GOST
275 psi
ASME B16.5 Class 150
2"
FNPT
GOST
150 psi
ASME B16.5 Class 150
2"
Socket Weld
Forged GOST
275 psi
ASME B16.5 Class 150
2-1/2"
Socket Weld
Forged GOST
275 psi
ASME B16.5 Class 150
3"
Socket Weld
Forged GOST
275 psi
ASME B16.5 Class 150
4"
FNPT
GOST
150 psi
ASME B16.5 Class 150
4"
Socket Weld
Forged GOST
275 psi
ASME B16.5 Class 300
1/2"
Slip On
Forged GOST
720 psi
ASME B16.5 Class 300
1/2"
Slip On
Forged GOST
720 psi
ASME B16.5 Class 300
1"
Slip On
Forged GOST
720 psi
ASME B16.5 Class 300
1"
Slip On
Forged GOST
720 psi
ASME B16.5 Class 300
1-1/4"
FNPT
Forged GOST
720 psi
ASME B16.5 Class 300
1-1/4"
Slip On
Forged GOST
720 psi
ASME B16.5 Class 300
1-1/2"
Slip On
Forged GOST
720 psi
ASME B16.5 Class 300
1-1/2"
Slip On
Forged GOST
720 psi
ASME B16.5 Class 300
2"
Slip On
Forged GOST
720 psi
ASME B16.5 Class 300
2"
Slip On
Forged GOST
720 psi
ASME B16.5 Class 300
2-1/2"
Slip On
Forged GOST
720 psi
ASME B16.5 Class 300
2-1/2"
Slip On
Forged GOST
720 psi
ASME B16.5 Class 300
3"
Slip On
Forged GOST
720 psi
ASME B16.5 Class 300
3"
Slip On
Forged GOST
720 psi
ASME B16.5 Class 300
4"
Slip On
Forged GOST
720 psi
ASME B16.5 Class 300
4"
Slip On
Forged GOST
720 psi
View Gost 12820-80 / Gost 12815 Flange/ Gost 33259 Flange Dimensions, Gost 12821 Standard Dimensions
Get GOST 12821-80 Blind Flanges, Slip on Flanges, Threaded Flanges, RTJ Flanges stock at lower prices compared to USA & UK



Buttweld Fittings
