Bs 4504 Flanges Dimensions

The Bs 4504 Pn 16 Flange Dimensions has eleven tables that address flanges of the plain, boss, and welding neck types that are integrally cast or forged. The Bs 4504 Forged Flange is still used today for the dimensions of economical and low duty stainless steel flanges even though it is obsolete. In applications where corrosion resistance and hygiene are more important than the usual high pressures and temperatures, which are required by conventional flanges, the flanges as per Bs 4504 are used.

Table of Content

Specification and Standards of ASME BS 4504 Flanges
Dimensions of ASME B16.5 Bs 4504 Pn 16 Flange
Dimensions of Bs 4504 Pn 10 Flanges
BS 4504 Pipe Flange Dimensions
ASME BS 4504 Flanges manufacturers
BS 4504 Pipe Flange Pressure Ratings
BS 4504 Flanges Weight Chart

Bs 4504 Forged Flange, BS 4504 Pipe Flanges, Buy Bs 4504 Pn16 Flanges, Bs 4504 Pn 10 Flanges at factory price in India

The Bs 4504 Pn 10 Flanges come in sizes ranging from DN15 to DN2000. The Slip On Flanges, Weld Neck Flanges, Plate Flanges, and Blind Flanges are some of the most frequently encountered BS 4504 Pipe Flange types. The PN6, PN10, PN16, PN25, and PN40 pressure grades are included in the Bs 4504 Pn16 Flanges.

Oil Black Paint or Anti-rust Paint are two common exterior surface treatments for ANSI B16.5 Class 150 BS 4504 Flanges. However, the Carbon Steel BS 4504 Flange manufacturer can use other materials, depending on the buyer's specifications, to coat the ASME B16.47 Series A and B. For example, the Alloy Steel BS 4504 Flanges could be Plated with a thin layer of Zinc or Yellow Transparent, which can slightly improve its corrosion resistance.

The BS 4504 Plate Flanges can also have their external surfaces treated using either hot-dip or cold-dip galvanization. The BS 4504 Flanges' corrosion resistance can be significantly increased by galvanising them. The most popular types of DIN86029 PN10 BS 4504 flanges are those that are forged, threaded, screwed, or plate-made. One or a combination of more than one standard production technique may be used in the production of the BS 4504 Circular Flanges For Pipes Valves And Fittings. For instance, three different manufacturing processes, including forging, heat treating, and machining, can be used to create the BS 4504 PN40 Flange.

The BS 4504 PN6 Flange is used and applied in a variety of sectors, including the petrochemical and acid production industries, heavy oil refineries, bitumen upgraders, nuclear power (mostly seamless). The water system, natural gas, electric power, and pipe projects all use stainless steel BS 4504 flanges as a component of their equipment.

Carries a complete line of Stainless Steel BS 4504 Flanges, Check Bs 4504 Pn 16 Flange Dimensions, Flanges As Per Bs 4504, ANSI B16.5 Class 150 BS 4504 Flange in mumbai, India

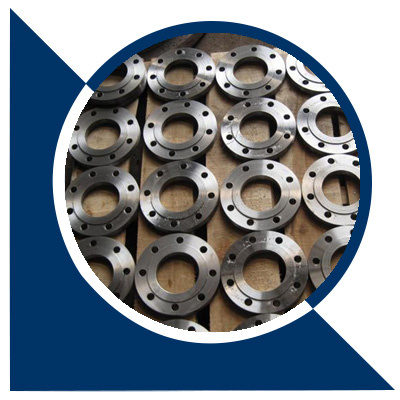

BS 4504 Flange

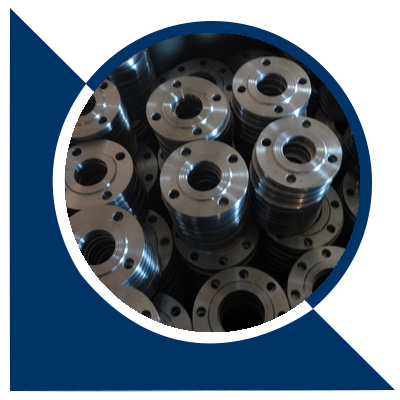

Ansi 150 BS 4504 Forged Flange

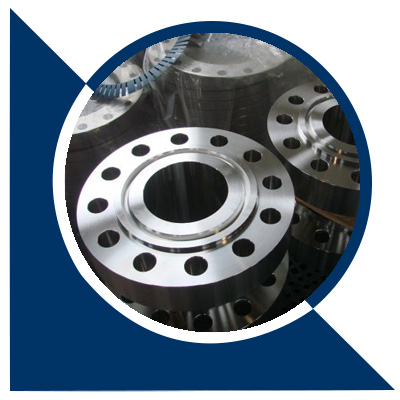

ASME BS 4504 Flanges

Specification and Standards of ASME BS 4504 Flanges

Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	BS 4504 Flanges
BS Flange Standards	ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges.
ASME B16.5 BS Flange size range	1/2" (15 NB) to 48" (1200NB) DN10~DN5000
BS Flange Standard DIN	6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
BS Flange Standard ANSI	Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
BS Flange Standard UNI	6Bar 10Bar 16Bar 25Bar 40Bar
BS Flange Standard EN	6Bar 10Bar 16Bar 25Bar 40Bar
BS Flange Standard BS	5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
Main Types	Forged / Threaded / Screwed / Plate
Flange supporting material	Gasket, Ring Joint, Flange Bolts
Most common types of BS Flanges	Socket Weld Ring Flange (SWRF), BS Threaded Ring Flange, BS Blind Ring Flange (BLRF), BS Weld Neck Ring Flange (WNRF), BS Slip-On Ring Flange (SORF), BS Ring Type Joint Flange (RTJF), BS Lap Joint Ring Flange (LJRF), BS
Connect Type/ Flange Face Type	Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove
BS Pipe Flanges Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Production technique	Forged, Heat treated and machined
Special design	As per your drawing AS, ANSI, BS, DIN and BS 15 NB (1/2") to 200 NB (8") Equal and Reducing Configurations BS Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange
Specialized manufacturer of	DIN 2566 en 1092 1 Pn16 Flange DIN 2566 pn16 Rtj Flange BS Sorf Flange BS Table Flanges DIN 2566 pn10 BS Large Diameter Flange BS Threaded Flanges BS Blind Flanges BS Plate Flanges BS Weld Neck Flanges BS Loose Flanges BS Orifice Flanges BS Slip-On Flanges BS Lap Joint Flanges BS Socketweld Flanges BS AS 4087 Water Flanges
Test	Hydrostatic testing machine, Direct-reading Spectrograph,UI trasonic flaw detector, X-ray detector, Magnetic particle detector
Equipment	Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc
Origin	West Europe /Indian / USA / Japan / BS
BS Flanges Standard	ANSI DIN, GOST, BS, UNI, BS, AS2129, BS, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, BS/ KS Flange, BS4504 Flange, GB Flange, BS Flange, GOST Flange, PSI Flange AS 2129: Table D; Table E; Table H B.S: BS4504 , BS3293, BS1560, BS10 ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, BS, Custom Drawings American standard (ANSI) ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 British standard (BS) German (DIN) Any other specilised flanges The other standard: BS; EN1092-1, GOST12820, BS; KS B1503, SABS1123; NFE29203;UNI2276 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638
Key markets and industries for BS Flangeo	Nuclear power (mostly seamless). Heavy oil refineries. Bitumen upgraders. Petrochemicals and acids.
Export to	Indonesia, Ireland, Ukraine, Singapore,Saudi Arabia,Canada, Peru, Dubai, Brazil, Iran, Korea, USA, India, Egypt, Thailand, Spain, Oman etc
BS Flanges Application	To Connect Pipe & Tubes in Power, Petroleum,Construction, Chemical, Gas, Shipbuilding,Metallurgy, etc

Dimensions of ASME B16.5 Bs 4504 Pn 16 Flange

Nom. Size	Flange						Raised Face		Boss	Drilling			Bolting	Neck					Bore Diameter
DN	A	C	C1	C2	D	D1	G	X	N	No.	I	J		M	F	E	R	T	B
10	90	14	14	14	20	35	40	2	30	4	14	60	M12	28	17.2	6	3	1.8	18.0
15	95	14	14	14	20	35	45	2	35	4	14	65	M12	32	21.3	6	3	2.0	22.0
20	105	16	16	16	24	38	58	2	45	4	14	75	M12	39	26.9	6	4	2.3	27.5
25	115	16	16	16	24	38	68	2	52	4	14	85	M12	46	33.7	6	4	2.6	34.5
32	140	16	18	16	26	40	78	2	60	4	18	100	M16	56	42.4	6	5	2.6	43.5
40	150	16	18	16	26	42	88	3	70	4	18	110	M16	64	48.3	7	5	2.6	49.5
50	165	18	20	18	28	45	102	3	84	4	18	125	M16	74	60.3	8	5	2.9	61.5
65	185	18	20	18	32	45	122	3	104	4 / 8	18	145	M16	92	76.1	10	6	2.9	77.5
80	200	20	20	20	34	50	138	3	118	8	18	160	M16	110	88.9	10	6	3.2	90.5
100	220	20	22	20	40	52	162	3	140	8	18	180	M16	130	114.3	12	6	3.6	116.0
125 *	250	22	22	22	44	55	188	3	168	8	18	210	M16	158	139.7	12	6	4.0	141.5
150	285	22	24	22	44	55	212	3	195	8	22	240	M20	184	168.3	12	8	4.5	170.5
200	340	24	26	24	44	62	268	3	246	12	22	295	M20	234	219.1	16	8	5.6	221.5
250	405	26	29	26	46	70	320	3	298	12	26	355	M24	288	273.0	16	10	6.3	276.5
300	460	28	32	28	46	78	378	4	350	12	26	410	M24	342	323.9	16	10	7.1	327.6
350	520	30	35	30	57	82	438	4	400	16	26	470	M24	390	355.6	16	10	8.0	359.0
400	580	32	38	32	63	85	490	4	456	16	30	525	M27	444	406.4	16	10	8.0	411.0
450	640	34	42	36	63	87	550	4	502	20	30	585	M27	490	457.0	16	12	8.0	462.0
500	715	34	46	36	73	90	610	4	559	20	33	650	M30	546	508.0	16	12	8.0	513.5
600	840	36	52	44	83	95	725	5	658	20	36	770	M33	650	610.0	18	12	8.8	616.5
700	910	36	60	48	83	100	795	5	760	24	36	840	M33	750	711.0	18	12	8.6	–
800	1025	38	68	52	90	105	900	5	864	24	39	950	M36	848	813.0	20	12	10.0	–
900	1125	40	76	58	94	110	1000	5	968	28	39	1050	M36	948	914.0	20	12	10.0	–
1000	1255	42	84	64	100	120	1115	5	1072	28	42	1170	M39	1056	1016.0	22	12	10.0	–
1200	1485	48	98	76	–	130	1330	5	–	32	48	1390	M45	1260	1220.0	30	12	12.5	–
1400	1685	52	–	–	–	145	1530	5	–	36	48	1590	M45	1465	1420.0	30	12	14.2	–
1600	1930	58	–	–	–	160	1750	5	–	40	56	1820	M52	1668	1620.0	35	12	16.0	–
1800	2130	62	–	–	–	170	1950	5	–	44	56	2020	M52	1870	1820.0	35	15	17.5	–
2000	2435	66	–	–	–	190	2150	5	–	48	62	2230	M56	2072	2020.0	40	15	20.0	–

Dimensions of Bs 4504 Pn 10 Flanges

Nom. Size	Flange						Raised Face		Boss	Drilling			Bolting	Neck					Bore Diameter
DN	A	C	C1	C2	D	D1	G	X	N	No.	I	J	Bolting	M	F	E	R	T	B
10	90	14	14	14	20	35	40	2	30	4	14	60	M12	28	17.2	6	3	1.8	18.0
15	95	14	14	14	20	35	45	2	35	4	14	65	M12	32	21.3	6	3	2.0	22.0
20	105	16	16	16	24	38	58	2	45	4	14	75	M12	39	26.9	6	4	2.3	27.5
25	115	16	16	16	24	38	68	2	52	4	14	85	M12	46	33.7	6	4	2.6	34.5
32	140	16	18	16	26	40	78	2	60	4	18	100	M16	56	42.4	6	5	2.6	43.5
40	150	16	18	16	26	42	88	3	70	4	18	110	M16	64	48.3	7	5	2.6	49.5
50	165	18	20	18	28	45	102	3	84	4	18	125	M16	74	60.3	8	5	2.9	61.5
65	185	18	20	18	32	45	122	3	104	4 / 8	18	145	M16	92	76.1	10	6	2.9	77.5
80	200	20	20	20	34	50	138	3	118	8	18	160	M16	110	88.9	10	6	3.2	90.5
100	220	20	22	20	40	52	162	3	140	8	18	180	M16	130	114.3	12	6	3.6	116.0
125 *	250	22	22	22	44	55	188	3	168	8	18	210	M16	158	139.7	12	6	4.0	141.5
150	285	22	24	22	44	55	212	3	195	8	22	240	M20	184	168.3	12	8	4.5	170.5
200	340	24	24	24	44	62	268	3	246	8	22	295	M20	234	219.1	16	8	5.6	221.5
250	395	26	26	26	46	68	320	3	298	12	22	350	M20	288	273.0	16	10	6.3	276.5
300	445	26	28	26	46	68	370	4	350	12	22	400	M20	342	323.9	16	10	7.1	327.6
350	505	26	28	26	53	68	430	4	400	16	22	460	M20	390	355.6	16	10	7.1	359.0
400	565	26	32	26	57	72	482	4	456	16	26	515	M24	440	406.4	16	10	7.1	411.0
450	615	28	36	28	63	72	532	4	502	20	26	565	M24	488	457.0	16	12	7.1	462.0
500	670	28	38	28	67	75	585	4	559	20	26	620	M24	540	508.0	16	12	7.1	513.5
600	780	28	42	34	75	80	685	5	658	20	30	725	M27	640	610.0	18	12	7.1	616.5
700	895	30	–	38	–	80	800	5	–	24	30	840	M27	746	711.0	18	12	8.0	–
800	1015	32	–	42	–	90	905	5	–	24	33	950	M30	848	813.0	18	12	8.0	–
900	1115	34	–	46	–	95	1005	5	–	28	33	1050	M30	948	914.0	20	12	10.0	–
1000	1230	34	–	52	–	95	1110	5	–	28	36	1160	M33	1050	1016.0	20	12	10.0	–
1200	1455	38	–	60	–	115	1330	5	–	32	39	1380	M36	1256	1220.0	25	12	11.0	–
1400	1675	42	–	–	–	120	1535	5	–	36	42	1590	M39	1460	1420.0	25	12	12.0	–
1600	1915	46	–	–	–	130	1760	5	–	40	48	1820	M45	1666	1620.0	25	12	14.0	–
1800	2115	50	–	–	–	140	1960	5	–	44	48	2020	M45	1866	1820.0	30	15	15.0	–
2000	2325	54	–	–	–	150	2170	5	–	48	48	2230	M45	2070	2020.0	30	15	16.0	–
2200	2550	58	–	–	–	160	2370	6	–	52	56	2440	M52	2275	2220.0	35	15	–	–
2400	2760	62	–	–	–	170	2570	6	–	56	56	2650	M52	2478	2420.0	35	15	–	–
2600	2960	65	–	–	–	180	2780	6	–	60	56	2850	M52	2680	2620.0	40	18	–	–
2800	3180	70	–	–	–	190	3000	6	–	64	56	3070	M52	2882	2820.0	40	18	–	–
3000	3405	75	–	–	–	200	3210	6	–	68	62	3290	M56	3085	3020.0	40	18	–	–

BS 4504 Pipe Flange Dimensions

BS 4504 Dimensions in MM

DN	D	C1	C2	H1	H2	H3	R	A	N1	N2	B1	d1	f1
10	90	14	14	20	35	6	3	17,2	28	30	18	40	2
15	95	14	14	20	35	6	3	21,3	32	35	22	45	2
20	105	14	14	24	38	6	4	26,9	39	45	27,5	58	2
25	115	16	16	24	38	6	4	33,7	46	52	34,5	68	2
32	140	18	16	26	40	6	5	42,4	56	60	43,5	78	2
40	150	18	16	26	42	7	5	48,3	64	70	49,5	88	3
50	165	20	18	28	45	8	5	60,3	74	84	61,5	102	3
65	185	20	18	32	45	10	6	76,1	92	104	77,5	122	3
80	200	20	20	34	50	10	6	88,9	110	118	90,5	138	3
100	220	22	20	40	52	12	6	114,3	130	140	116	162	3
125	250	22	22	44	55	12	6	139,7	158	168	141,5	188	3
150	285	24	22	44	55	12	8	168,3	184	195	170,5	212	3
200	340	26	24	44	62	16	8	219,1	234	246	221,5	268	3
250	405	29	26	46	70	16	10	273	288	298	276,5	320	3
300	460	32	28	46	78	16	10	323,9	342	350	327,5	378	4
350	520	35	30	57	82	16	10	355,6	390	400	359	438	4
400	580	38	32	63	85	16	10	406,4	444	456	411,0	490	4
450	640	42	34	68	87	16	12	457,0	490	502	462,0	550	4
500	715	46	34	73	90	16	12	508,0	546	559	513,5	610	4
600	840	52	36	83	95	18	12	610,0	650	658	616,5	725	5
700	910	60	36	83	100	18	12	711,0	750	760	–	795	5
800	1025	68	38	90	105	20	12	813,0	848	864	–	900	5
900	1125	76	40	94	110	20	12	914,0	948	968	–	1000	5
1000	1255	84	42	100	120	22	12	1016,0	1056	1072	–	1115	5
1200	1485	98	48	–	130	30	12	1220,0	1260	–	–	1330	5
1400	1685	–	52	–	145	30	12	1420,0	1465	–	–	1530	5
1600	1930	–	58	–	160	35	12	1620,0	1668	–	–	1750	5
DN	D	C1	C2	H1	H2	H3	R	A	N1	N2	B1	d1	f1

ASME BS 4504 Flanges manufacturers

BS 4504 Weld Neck Flanges

BS 4504 PN 10 Slip On Flange

4504 BS Socket Weld Flange

ASME BS 4504 Blind Flanges

4504 BS Lap Joint Flanges

ASME BS 4504 Spectacle Blind Flange

BS 4504 Long WN Flange

ASME B16.5 BS 4504 Screw Flange

BS 4504 Reducing Flange

ASME B16.5 BS 4504 Ring Joint Flange

ASME BS 4504 Plate Flange

BS 4504 Tongue & Groove Flanges

BS 4504 Bleed Rings

4504 BS Forged Flange

ASME BS 4504 Spacer Flange

ASME B16.5 BS 4504 High Hub Blind Flange

BS 4504 Puddle Flanges

4504 BS Male & Female Flanges

ASME B16.5 BS 4504 Raised Face Flanges

ASME BS 4504 Weldoflange

ASME B16.5 BS 4504 Square Flange

4504 BS Spade Flange

ASME BS 4504 Orifice Flange

BS 4504 Nipolet Flange

BS 4504 Pipe Flange Pressure Ratings

BS 4504 Flanges Flange Standards / Types and Pressure Class :

ASME/ANSI B 16.36	Welding Neck Flange, Slip on Flange, Threaded Flange
PRESSURE CLASS	300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.5	Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange
PRESSURE CLASS	150, 300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.47	Welding Neck Flange, Blind Flange [Series A & B]
PRESSURE CLASS	75, 150, 300, 400, 600, 900
BS 4504 SEC 3.1	Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange
PRESSURE CLASS	PN 2.5 TO PN 40
BS 4504[PART 1]	Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange
PRESSURE CLASS	PN 2.5 TO PN 400
BS 1560 BOSS	Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange
PRESSURE CLASS	150, 300, 400, 600, 900, 1500, 2500
BS10	Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange
TABLE	D, E, F, H
DIN FLANGES	DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673
PRESSURE CLASS	PN 6 TO PN 100

BS 4504 Flanges Weight Chart

15mm (1/2") BS 4504 Flange Weight Chart

Standard	Class	Diameter	Bolt Circle Diameter	Number of Bolts	Bolt Size	Diameter of Bolt Hole
AS4087 Flanges	PN14 Flanges	95	67	4	M12	14
AS 2129 Flange	Table C Flanges	95	67	4	13	14
	Table D Flanges	95	67	4	13	14
	Table E Flanges	95	67	4	13	14
	Table F Flanges	95	67	4	13	14
	Table H Flanges	114	83	4	16	17
	Table J Flanges	114	83	4	16	17
ANSI B16.5 Flanges	ANSI 150 Flanges	89	60	4	13	16
	ANSI 300 Flanges	95	67	4	13	16
	ANSI 600 Flanges	95	67	4	13	16
	ANSI 900 Flanges	121	83	4	19	22
	ANSI 1500 Flanges	121	83	4	19	22
BS 4504 (DIN) Flange	PN6 Flanges	80	55	4	M10	11
	PN10 Flanges	95	65	4	M12	14
	PN16 Flanges	95	65	4	M12	14
	PN20 Flanges	90	60.5	4	M14	16
	PN25 Flanges	95	65	4	M12	14
	PN40 Flanges	95	65	4	M12	14

We are dedicated Alloy Steel BS 4504 Flanges, BS 4504 Plate Flanges, ASME B16.47 Series A and B BS 4504 Flanges, Carbon Steel BS 4504 Flange suppliers in Mumbai, India

BS 4504 Flange other types

BS 4504 PN 10 Wnrf Flanges	ASME BS 4504 PN 10 Reducing Flanges
BS 4504 PN 10 Split Flanges	BS 4504 PN 10 Reducing Flange
BS 4504 PN 10 Threaded Reducing Flanges	BS 4504 PN 10 Reducing Flanges
BS 4504 PN 10 Split Flanges	ASME BS 4504 PN 10 Blind Flanges
BS 4504 PN 10 Turbo Flanges	BS 4504 PN 10 Forged Flanges
BS 4504 PN 10 Slip-On Pipe Flanges	BS 4504 PN 10 Blind Flange
BS 4504 PN 10 Square Flanges	BS 4504 PN 10 Ansi Flanges
BS 4504 PN 10 Vacuum Flanges	BS 4504 PN 10 Reducing Flange
BS 4504 PN 10 Reducing Flanges	BS 4504 PN 10 Forged Flange
BS 4504 PN 10 Blank Flanges	BS 4504 PN 10 Orifice Flanges
BS 4504 PN 10 Companion Flanges	BS 4504 PN 10 Orifice Flanges
Ansi 150 BS 4504 PN 10 Flanges	BS 4504 PN 10 JIS BLRF Flanges
BS 4504 PN 10 Class 150 Flanges	BS 4504 PN 10 Duct Flanges
BS 4504 PN 10 Cover Flanges	BS 4504 PN 10 Orifice Flanges
BS 4504 PN 10 Sbc Header Flanges	BS 4504 PN 10 Raised Face Blind Flanges
BS 4504 PN 10 Bsp Flanges	ASME BS 4504 PN 10 Orifice Flanges
Class 600 BS 4504 PN 10 Flanges	ASME BS 4504 PN 10 Socket weld Flanges
Custom BS 4504 PN 10 Flanges	BS 4504 PN 10 Socket weld Flanges
Large Diameter BS 4504 PN 10 Flanges	BS 4504 PN 10 SWRF Flanges
Table E BS 4504 PN 10 Flanges	ASME B16.5 BS 4504 PN 10 Socket weld Flanges
BS 4504 PN 10 Forged Flanges	ASME BS 4504 PN 10 Threaded Flanges
BS 4504 PN 10 Din Flanges	BS 4504 PN 10 Socket weld Flanges
BS 4504 PN 10 Floor Flanges	BS 4504 PN 10 Threaded Flanges
Gaskets For BS 4504 PN 10 Flanges	BS 4504 PN 10 Threaded Flanges
BS 4504 PN 10 Lap Joint Flanges	BS 4504 PN 10 Threaded Flanges
BS 4504 PN 10 Tube Flanges	ASME BS 4504 PN 10 Header Flanges
BS 4504 PN 10 Handrail Flanges	BS 4504 PN 10 fastenersonline Flanges
BS 4504 PN 10 Long Weld Neck Flanges	BS 4504 PN 10 Long weld Neck Flanges
High Pressure BS 4504 PN 10 Flanges	BS 4504 PN 10 Threaded Flanges
BS 4504 PN 10 Exhaust Flanges	ASME BS 4504 PN 10 Slip On Plate Flanges
BS 4504 PN 10 Stub End Flanges	BS 4504 PN 10 Raised Face Weld Neck Flanges
BS 4504 PN 10 Pipe Flanges	BS 4504 PN 10 Raised Face Slip On Flanges
BS 4504 PN 10 Header Flanges	BS 4504 PN 10 Slip On Flanges
BS 4504 PN 10 Backing Flanges	BS 4504 PN 10 Exhaust Flanges
BS 4504 PN 10 Slip On Flanges	BS 4504 PN 10 Weld Neck Flange
BS 4504 PN 10 Plate Flanges	BS 4504 PN 10 Pipe Flanges
BS 4504 PN 10 Muffler Flanges	BS 4504 PN 10 Long weld Neck Flanges
BS 4504 PN 10 Pump Flanges	BS 4504 PN 10 Orifice Flanges
BS 4504 PN 10 Puddle Flanges	BS 4504 PN 10 Ring Type Joint Flange
BS 4504 PN 10 Pad Flanges	BS 4504 PN 10 RTJ Flanges
BS 4504 PN 10 Metric Flanges	ASME BS 4504 PN 10 Long weld Neck Flanges
BS 4504 PN 10 Reducing Flanges	BS 4504 PN 10 RTJ Flanges
BS 4504 PN 10 Raised Face Flanges	BS 4504 PN 10 RTJ Flanges
BS 4504 PN 10 Ring Flanges	BS 4504 PN 10 RTJ Flanges
BS 4504 PN 10 Shower Rod Flanges	BS 4504 PN 10 Sae Flanges
BS 4504 PN 10 Pressed Flanges	BS 4504 PN 10 Ring Type Joint Flanges
BS 4504 PN 10 Screwed Flanges	BS 4504 PN 10 Clad Flanges
BS 4504 PN 10 Socket Weld Flanges	BS 4504 PN 10 WNRF Flange

BS 4504 Forged and Plate Flange

BS 4504 Flange
BS 4504 Orifice Flange	BS 4504 Forged Flange
BS 4504 Lap Joint Flange	BS 4504 Plate Flange
BS 4504 Weld Neck Flange	BS 4504 Socket Weld Flange
BS 4504 Ring Type Joint Flange	BS 4504 Square Flange
BS 4504 Slip-On Flange	BS 4504 Threaded Flange
BS 4504 Blind Flange	BS 4504 Reducing Flange

View BS 4504 PN6 and PN40 Flange Dimensions, BS 4504 Flange Weight and BS 4504 Flange Pressure Ratings

India’s Largest Manufacturer of BS 4504 Circular Flanges for pipes valves and fittings, DIN86029 PN10 BS 4504 Flanges, Class 300, 600, 900, 1500 BS 4504 Flange in mumbai, India
