Jis B2220 - Flanges 5k & 10k

Deutsches Institut is the abbreviation for the Japanese standard specification known as Stainless Steel Flange Jis 10k. This specification for ANSI B16.5 JIS B2220 Flanges includes both Slip On Flange and Blind Flange systems. The Alloy Steel 5K KS B1503 Flanges come in sizes ranging from DN 10 to DN 2000. While the pressure grades for the 5K Carbon Steel JIS B2220 Flange are 2K, 5K, 10K, 16K, 20K, and 30K.

Table of Content

Jis B2220 16k Flange, Buy Jis B2220 2k Flanges, ANSI B16.5 5K (KS B1503 / JIS B2220)Flanges at factory price in India

Raised face is the most popular Jis B2220 5k Flange Face Type (RF). In addition to the raised form, Jis B2220 Flanges also come in flat face (FF), groove and tongue, and ring type joint varieties (RTJ). The ANSI B16.5 Flanges, ANSI B16.47 Series A & B, DIN Flange, JIS B2220 Flange, MSS SP44 Flange, EN1092-1 FLANGES, ASA, API 605, and AWWA C207 Flange are among the standards covered by the Jis B2220 Blind Flange.

B2220 Flange Jis Manufacturers employ metals like stainless steel, carbon steel, alloy steel, and nickel alloys to make these flanges. Depending on the purpose or intended usage, the material utilised to create these ANSI B16.5 5K (KS B1503 / JIS B2220)Flanges will vary. Examples include instances where Stainless Steel 10K JIS B2220 Flanges will be exposed to corrosive media at high temperatures Therefore, it is necessary that these flanges function effectively in the presence of compounds like these, preserving their good strength and avoiding deformation.

The consumer can choose between having the Bolts For Jis B2220 Flanges' surface treated to increase both its mechanical and physical attributes and keeping it unfinished or plain. However, if the buyer requests Jis B2220 - Flanges 5k & 10k to be surface treated, the majority of market vendors offer to paint the flange's surface oil black or anti-rust. Yellow Transparent, zinc plating, and either cold or hot dip galvanization are additional treatments applied to the flange's surface.

The Jis B2220's service life is increased and its lifespan is ensured by coating the surface, which normally makes them resistant to corrosion. According to the needs of the buyer, value-added services such as customised flanges and CNC machining can be done on the Jis B2220 - Flanges 5k & 10k.

TA chain of pipes, tubes, or flanges can be joined together with the Jis B2220 16k Flange. Certain flanges require high pressure. Jis B2220 2k Flanges are necessary for businesses like the oil and gas sector because they must withstand significant physical force and pressure. As a result, manufacturers frequently put their products through testing before making them available for sale to a certain industry. The Jis B2220 can be welded if there is little demand for pressure in that particular application or industry. However, the Jis B2220 5k Flange must be either bolted or threaded if the application has a requirement for pressure.

Jis B2220 Blind Flange, Carries a complete line of Bolts For Jis B2220 Flanges, Stainless Steel 10K JIS B2220 Flanges in mumbai, India

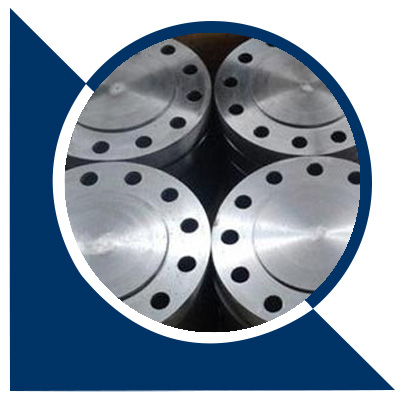

B2220 JIS Blind Flanges
B2220 JIS Blind Flanges
ASME JIS B2220 Flanges
ASME JIS B2220 Flanges

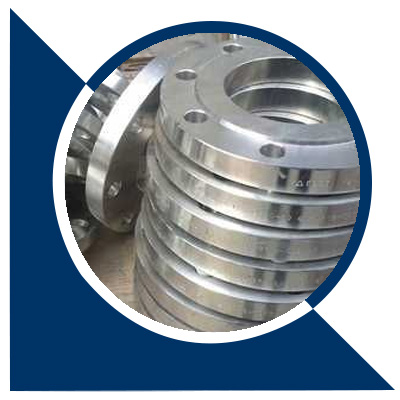

JIS B2220 Flanges
JIS B2220 Flanges



Specification and Standards of JIS B2220 Flanges
Specifications JIS B2220 Flanges
JIS Flange Standards ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges.
ASME B16.5 JIS Flange size range 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
JIS Flange Standard DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
JIS Flange Standard ANSI Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
JIS Flange Standard UNI 6Bar 10Bar 16Bar 25Bar 40Bar
JIS Flange Standard  EN 6Bar 10Bar 16Bar 25Bar 40Bar
JIS Flange Standard  JIS 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
Main Types Forged / Threaded / Screwed / Plate
Flange supporting material Gasket, Ring Joint, Flange Bolts
Most common types of JIS Flanges
  • Socket Weld Ring Flange (SWRF), JIS
  • Threaded Ring Flange, JIS
  • Blind Ring Flange (BLRF), JIS
  • Weld Neck Ring Flange (WNRF), JIS
  • Slip-On Ring Flange (SORF), JIS
  • Ring Type Joint Flange (RTJF), JIS
  • Lap Joint Ring Flange (LJRF), JIS
Connect Type/ Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove
JIS Pipe Flanges Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Production technique
  • Forged, Heat treated and machined
Special design

As per your drawing

AS, ANSI, BS, DIN and JIS
15 NB (1/2") to 200 NB (8")
Equal and Reducing Configurations

JIS Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange
Specialized manufacturer of
  • DIN 2566 en 1092 1
  • Pn16 Flange
  • DIN 2566 pn16
  • Rtj Flange
  • JIS Sorf Flange
  • JIS Table Flanges
  • DIN 2566 pn10
  • JIS Large Diameter Flange
  • JIS Threaded Flanges
  • JIS Blind Flanges
  • JIS Plate Flanges
  • JIS Weld Neck Flanges
  • JIS Loose Flanges
  • JIS Orifice Flanges
  • JIS Slip-On Flanges
  • JIS Lap Joint Flanges
  • JIS Socketweld Flanges
  • JIS AS 4087 Water Flanges
Test Hydrostatic testing machine, Direct-reading Spectrograph,UI trasonic flaw detector, X-ray detector, Magnetic particle detector
Equipment Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc
Origin West Europe /Indian / USA / Japan / Korean
JIS Flanges Standard

ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange

  • AS 2129: Table D; Table E; Table H
  • B.S: BS4504 , BS3293, BS1560, BS10
  • ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
  • ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
  • American standard (ANSI)
  • ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
  • British standard (BS)
  • German (DIN)
  • Any other specilised flanges
  • The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203;UNI2276
  • DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638
Key markets and industries for JIS Flange
  • Nuclear power (mostly seamless).
  • Heavy oil refineries.
  • Bitumen upgraders.
  • Petrochemicals and acids.
Export to Indonesia, Ireland, Ukraine, Singapore,Saudi Arabia,Canada, Peru, Dubai, Brazil, Iran, Korea, USA, India, Egypt, Thailand, Spain, Oman etc
JIS Flanges Application
  • To Connect Pipe & Tubes in Power, Petroleum,Construction, Chemical, Gas, Shipbuilding,Metallurgy, etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175



Pressure Ratings of B2220 JIS Flanges

JIS B2220 Flanges Flange Standards / Types and Pressure Class :

ASME/ANSI B 16.36 Welding Neck Flange, Slip on Flange, Threaded Flange
PRESSURE CLASS 300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.5 Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.47 Welding Neck Flange, Blind Flange [Series A & B]
PRESSURE CLASS 75, 150, 300, 400, 600, 900
BS 4504 SEC 3.1 Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange
PRESSURE CLASS PN 2.5 TO PN 40
BS 4504[PART 1] Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange
PRESSURE CLASS PN 2.5 TO PN 400
BS 1560 BOSS Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
BS10 Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange
TABLE D, E, F, H
DIN FLANGES DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673
PRESSURE CLASS PN 6 TO PN 100



JIS Grade B2220 Flanges manufacturers in India
JIS B2220 Blind Flanges
JIS B2220 Blind Flanges
B2220 JIS Slip On Flanges
B2220 JIS Slip On Flanges
ASME JIS B2220 Weld Neck Flanges
ASME JIS B2220 Weld Neck Flanges
ASME JIS B2220 Socket Weld Flanges
ASME JIS B2220 Socket Weld Flanges
JIS B2220 Puddle Flanges
JIS Grade B2220 Puddle Flanges
ASME B16.5 B2220 JIS Male & Female Flanges
ASME B16.5 B2220 JIS Male & Female Flanges
JIS B2220 Weldoflange
JIS B2220 Weldoflange
B2220 JIS Raised Face Flanges
B2220 JIS Raised Face Flanges
ASME JIS B2220 Spade Flange
ASME JIS B2220 Spade Flange
ASME B16.5 B2220 JIS Square Flanges
ASME B16.5 B2220 JIS Square Flanges
B2220 JIS Orifice Flange
B2220 JIS Orifice Flange
B2220 JIS Nipo flange
B2220 JIS Nipo flange
JIS Grade B2220 High Hub Blind Flange
JIS Grade B2220 High Hub Blind Flange
ASME JIS B2220 Spacer Flange
ASME JIS B2220 Spacer Flange
JIS B2220 Bleed Rings Flange
JIS B2220 Bleed Rings Flange
B2220 JIS Forged Flanges
B2220 JIS Forged Flanges
B2220 JIS Ring Type Joint Flanges
B2220 JIS Ring Type Joint Flanges
ASME JIS B2220 Plate Flanges
ASME JIS B2220 Plate Flanges
JIS B2220 Reducing Flange
JIS B2220 Reducing Flange
ASME JIS B2220 Tongue & Groove Flanges
ASME JIS B2220 Tongue & Groove Flanges
JIS B2220 Spectacle Blind Flanges
JIS B2220 Spectacle Blind Flanges
Steel JIS B2220 Lap Joint Flanges
Steel JIS B2220 Lap Joint Flanges
B2220 JIS Threaded Flange
B2220 JIS Threaded Flange
ASME B16.5 B2220 JIS Long Weld Neck Flanges
ASME B16.5 B2220 JIS Long Weld Neck Flanges



Size Chart of JIS B2220 Flange
Size
d
D
C
Number of Bolts
h
t
010 - 3/8"
17.8 mm
75 mm
55 mm
4
12 mm
9 mm
015 - 1/2"
22.2 mm
80 mm
60 mm
4
12 mm
9 mm
020 - 3/4"
27.7 mm
85 mm
65 mm
4
12 mm
10 mm
025 - 1"
34.5 mm
95 mm
75 mm
4
12 mm
10 mm
032 - 1-1/4"
43.2 mm
115 mm
90 mm
4
15 mm
12 mm
040 - 1-1/2"
49.1 mm
120 mm
95 mm
4
15 mm
12 mm
050 - 2"
61.1 mm
130 mm
105 mm
4
15 mm
14 mm
065 - 2-1/2"
77.1 mm
155 mm
130 mm
4
15 mm
14 mm
080 - 3"
90.0 mm
180 mm
145 mm
4
19 mm
14 mm
090 - 3-1/2"
102.6 mm
190 mm
155 mm
4
19 mm
14 mm
100 - 4"
115.4 mm
200 mm
165 mm
8
19 mm
16 mm
125 - 5"
141.2 mm
235 mm
200 mm
8
19 mm
16 mm
150 - 6"
166.6 mm
265 mm
230 mm
8
19 mm
18 mm
175 - 7"
192.1 mm
300 mm
260 mm
8
23 mm
18 mm
200 - 8"
218.0 mm
320 mm
280 mm
8
23 mm
20 mm
250 - 10"
269.5 mm
385 mm
345 mm
12
23 mm
22 mm
300 - 12"
321.0 mm
430 mm
390 mm
12
23 mm
22 mm
350 - 14"
358.1 mm
480 mm
435 mm
12
25 mm
24 mm
400 - 16"
409.0 mm
540 mm
495 mm
16
25 mm
24 mm
450 - 18"
460 mm
605 mm
555 mm
16
25 mm
24 mm
500 - 20"
511.0 mm
655 mm
605 mm
20
25 mm
24 mm
550 - 22"
562.0 mm
720 mm
665 mm
20
27 mm
26 mm
600 - 24"
613.0 mm
770 mm
715 mm
20
27 mm
26 mm
650 - 26"
664.0 mm
825 mm
770 mm
24
27 mm
26 mm
700 - 28"
715 mm
875 mm
820 mm
24
27 mm
26 mm



ASME B16.5 B2220 JIS Forged and Plate Flange
JIS B2220 Flange
JIS B2220 Ring Type Joint Flange
JIS B2220 Square Flange
JIS B2220 Blind Flange
JIS B2220 Reducing Flange
JIS B2220 Slip-On Flange
JIS B2220 Threaded Flange
JIS B2220 Orifice Flange
JIS B2220 Forged Flange
JIS B2220 Lap Joint Flange
JIS B2220 Plate Flange
JIS B2220 Weld Neck Flange
JIS B2220 Socket Weld Flange



Dimensions of ASME B16.5 B2220 JIS 5K Flange
JIS 5K
LTB
DRILLING DATA
NOMINAL PIPE SIZE
OUTSIDE
DIAMETER OF
FLANGE
THIKNESS OF
FLANGE
THIKNESS OF
BLIND
BOSSED
LENGTH
SOH.SW LI
WELD NECK
LENGTH
PITCH CIRCLE
DIAMETER
NUMBER OF
BOLT HOLES
BOLT HOLE
DIAMETER
MM
INCH
C
T
T1
L
L1
PCD
#
H
10
3/8
75
9
9
13
24
55
4
12
15
1/2
80
9
9
13
25
60
4
12
20
3/4
85
10
10
15
28
65
4
12
25
1
95
10
10
17
30
75
4
12
32
1 1/4
115
12
12
19
33
90
4
15
40
2 1/2
120
12
12
20
34
95
4
15
50
2
130
14
14
24
36
105
4
15
65
2 1/2
155
14
14
27
39
130
4
15
80
3
180
14
14
30
41
145
4
19
90
3 1/2
190
14
14
N/A
41
155
4
19
100
4
200
16
16
36
41
165
8
19
125
5
235
16
16
40
43
200
8
19
150
6
265
18
18
40
49
230
8
19
175
7
300
18
18
N/A
49
260
8
23
200
8
320
20
20
N/A
53
280
8
23
225
9
345
20
20
N/A
54
305
12
23
250
10
385
22
22
N/A
61
345
12
23
300
12
430
22
22
N/A
62
390
12
23
350
14
480
24
24
N/A
73
435
12
25
400
16
540
24
24
N/A
76
495
16
25
450
18
605
24
24
40
79
555
16
25
500
20
655
24
24
40
79
605
20
25
550
22
720
26
26
42
81
665
20
27
600
24
770
26
26
44
81
715
20
27
650
26
825
26
28
48
85
770
24
27
700
28
875
26
30
48
94
820
24
27
750
30
945
28
32
52
100
880
24
33
800
32
995
28
34
52
100
930
24
33
850
34
1045
28
36
54
108
980
24
33
900
36
1095
30
36
56
108
1030
24
33
1000
40
1195
32
40
60
116
1130
28
33



JIS10K
LTB
DRILLING DATA
NOMINAL PIPE SIZE
OUTSIDE
DIAMETER OF
FLANGE
THIKNESS OF
FLANGE
THIKNESS OF
BLIND
BOSSED
LENGTH
SOH.SW LI
WELD NECK
LENGTH
PITCH CIRCLE
DIAMETER
NUMBER OF
BOLT HOLES
BOLT HOLE
DIAMETER
MM
INCH
C
T
T1
L
L1
PCD
#
H
10
3/8
90
12
12
16
29
65
4
15
15
1/2
95
12
12
16
31
70
4
15
20
3/4
100
14
14
20
32
75
4
15
25
1
125
14
14
20
36
90
4
19
32
1 1/4
135
16
16
22
38
100
4
19
40
2 1/2
140
16
16
24
38
105
4
19
50
2
155
16
16
24
40
120
4
19
65
2 1/2
175
18
18
27
44
140
4
19
80
3
185
18
18
30
45
150
8
19
90
3 1/2
195
18
18
N/A
45
160
8
19
100
4
210
18
18
36
45
175
8
19
125
5
250
20
20
40
47
210
8
23
150
6
280
22
22
40
53
240
8
23
175
7
305
22
22
N/A
55
265
12
23
200
8
330
22
22
N/A
58
290
12
23
225
9
350
22
22
N/A
58
310
12
23
250
10
400
24
24
36
65
355
12
25
300
12
445
24
24
38
68
400
16
25
350
14
490
26
26
42
79
445
16
25
400
16
560
28
28
44
85
510
16
27
450
18
620
30
30
48
90
565
20
27
500
20
675
30
30
48
99
620
20
27
550
22
745
32
34
52
111
680
20
33
600
24
795
32
36
52
112
730
24
33
650
26
845
34
38
56
116
780
24
33
700
28
905
34
40
58
132
840
24
33
750
30
970
36
44
62
139
900
24
33
800
32
1020
36
46
64
139
950
28
33
850
34
1070
36
48
66
139
1000
28
33
900
36
1120
38
50
70
140
1050
28
33
1000
40
1235
40
56
74
151
1160
28
39



JIS16K
LTB
DRILLING DATA
NOMINAL PIPE SIZE
OUTSIDE
DIAMETER OF
FLANGE
THIKNESS OF
FLANGE
THIKNESS OF
BLIND
BOSSED
LENGTH
SOH.SW LI
WELD NECK
LENGTH
PITCH CIRCLE
DIAMETER
NUMBER OF
BOLT HOLES
BOLT HOLE
DIAMETER
MM
INCH
C
T
T1
L
L1
PCD
#
H
10
3/8
90
12
12
16
31
65
4
15
15
1/2
95
12
12
16
32
70
4
15
20
3/4
100
14
14
20
34
75
4
15
25
1
125
14
14
20
36
90
4
19
32
1 1/4
135
16
16
22
39
100
4
19
40
2 1/2
140
16
16
24
39
105
4
19
50
2
155
16
16
24
40
120
8
19
65
2 1/2
175
18
18
26
46
140
8
19
80
3
200
20
20
28
49
160
8
23
90
3 1/2
210
20
20
30
50
170
8
23
100
4
225
22
22
34
56
185
8
23
125
5
270
22
22
34
60
225
8
25
150
6
305
24
24
38
79
260
12
25
200
8
350
26
26
40
73
305
12
25
250
10
430
28
28
44
81
380
12
27
300
12
480
30
30
48
88
430
16
27
350
14
540
34
34
52
104
480
16
33
400
16
605
38
38
60
115
540
16
33
450
18
675
40
40
64
126
605
20
33
500
20
730
42
42
68
128
660
20
33
550
22
795
44
44
70
135
720
20
39
600
24
845
46
46
74
141
770
24
39
650
26
895
48
N/A
77
N/A
820
24
39
700
28
960
50
N/A
80
N/A
875
24
42
750
30
1020
52
N/A
83
N/A
935
24
42
800
32
1085
54
N/A
86
N/A
990
24
48
850
34
1135
56
N/A
89
N/A
1040
24
48
900
36
1185
58
N/A
93
N/A
1090
28
48
1000
40
1320
62
N/A
99
N/A
1210
28
56



JIS20K
LTB
DRILLING DATA
NOMINAL PIPE SIZE
OUTSIDE
DIAMETER OF
FLANGE
THIKNESS OF
FLANGE
THIKNESS OF
BLIND
BOSSED
LENGTH
SOH.SW LI
WELD NECK
LENGTH
PITCH CIRCLE
DIAMETER
NUMBER OF
BOLT HOLES
BOLT HOLE
DIAMETER
MM
INCH
C
T
T1
L
L1
PCD
#
H
10
3/8
90
14
14
20
33
65
4
15
15
1/2
95
14
14
20
34
70
4
15
20
3/4
100
16
16
22
36
75
4
15
25
1
125
16
16
24
38
90
4
19
32
1 1/4
135
18
18
26
41
100
4
19
40
2 1/2
140
18
18
26
41
105
4
19
50
2
155
18
18
26
42
120
8
19
65
2 1/2
175
20
20
30
48
140
8
19
80
3
200
22
22
34
51
160
8
23
90
3 1/2
210
24
24
36
54
170
8
23
100
4
225
24
24
36
58
185
8
23
125
5
270
26
26
40
64
225
8
25
150
6
305
28
28
42
73
260
12
25
200
8
350
30
30
46
77
305
12
25
250
10
430
34
34
52
87
380
12
27
300
12
480
36
36
56
94
430
16
27
350
14
540
40
40
62
110
480
16
33
400
16
605
46
46
70
123
540
16
33
450
18
675
48
48
78
134
605
20
33
500
20
730
50
50
84
136
660
20
33
550
22
795
52
52
90
143
720
20
39
600
24
845
54
56
96
149
770
24
39



JIS B2220 Flanges Weight Chart

15mm (1/2") JIS Flange Weight Chart

Standard
Class
Diameter
Bolt Circle Diameter
Number of Bolts
Bolt Size
Diameter of Bolt Hole
AS4087 Flanges
PN14 Flanges
95
67
4
M12
14
AS 2129 Flange
Table C Flanges
95
67
4
13
14
Table D Flanges
95
67
4
13
14
Table E Flanges
95
67
4
13
14
Table F Flanges
95
67
4
13
14
Table H Flanges
114
83
4
16
17
Table J Flanges
114
83
4
16
17
ANSI B16.5 Flanges
ANSI 150 Flanges
89
60
4
13
16
ANSI 300 Flanges
95
67
4
13
16
ANSI 600 Flanges
95
67
4
13
16
ANSI 900 Flanges
121
83
4
19
22
ANSI 1500 Flanges
121
83
4
19
22
ISO 7005 (DIN) Flange
PN6 Flanges
80
55
4
M10
11
PN10 Flanges
95
65
4
M12
14
PN16 Flanges
95
65
4
M12
14
PN20 Flanges
90
60.5
4
M14
16
PN25 Flanges
95
65
4
M12
14
PN40 Flanges
95
65
4
M12
14



Other Types B2220 JIS Flange
JIS B2220 Wnrf Flanges
ASME JIS B2220 Reducing Flanges
JIS B2220 Sbc Header Flanges
JIS B2220 Raised Face Blind Flanges
JIS B2220 Split Flanges
B2220 JIS Reducing Flange
JIS B2220 Threaded Reducing Flanges
JIS B2220 Reducing Flanges
JIS B2220 Vacuum Flanges
JIS B2220 Reducing Flange
JIS B2220 Turbo Flanges
JIS B2220 Forged Flanges
JIS B2220 Split Flanges
ASME JIS B2220 Blind Flanges
JIS B2220 Square Flanges
JIS B2220 Ansi Flanges
Ansi 150 JIS B2220 Flanges
JIS B2220 JIS BLRF Flanges
JIS B2220 Slip-On Pipe Flanges
B2220 JIS Blind Flange
JIS B2220 Reducing Flanges
B2220 JIS Forged Flange
JIS B2220 Companion Flanges
B2220 JIS Orifice Flanges
JIS B2220 Class 150 Flanges
JIS B2220 Duct Flanges
JIS B2220 Cover Flanges
JIS B2220 Orifice Flanges
JIS B2220 Bsp Flanges
ASME JIS B2220 Orifice Flanges
Custom JIS B2220 Flanges
JIS B2220 Socket weld Flanges
JIS B2220 Din Flanges
B2220 JIS Socket weld Flanges
JIS B2220 Blank Flanges
JIS B2220 Orifice Flanges
Large Diameter JIS B2220 Flanges
JIS B2220 SWRF Flanges
Table E JIS B2220 Flanges
ASME B16.5 B2220 JIS Socket weld Flanges
Class 600 JIS B2220 Flanges
ASME JIS B2220 Socket weld Flanges
JIS B2220 Forged Flanges
ASME JIS B2220 Threaded Flanges
Gaskets For JIS B2220 Flanges
B2220 JIS Threaded Flanges
JIS B2220 Floor Flanges
JIS B2220 Threaded Flanges
High Pressure JIS B2220 Flanges
JIS B2220 Threaded Flanges
JIS B2220 Long Weld Neck Flanges
JIS B2220 Long weld Neck Flanges
JIS B2220 Handrail Flanges
JIS B2220 fastenersonline Flanges
JIS B2220 Pipe Flanges
JIS B2220 Raised Face Slip On Flanges
JIS B2220 Lap Joint Flanges
JIS B2220 Threaded Flanges
JIS B2220 Exhaust Flanges
ASME JIS B2220 Slip On Plate Flanges
JIS B2220 Plate Flanges
JIS B2220 Pipe Flanges
JIS B2220 Backing Flanges
JIS B2220 Exhaust Flanges
JIS B2220 Header Flanges
B2220 JIS Slip On Flanges
JIS B2220 Metric Flanges
ASME JIS B2220 Long weld Neck Flanges
JIS B2220 Pump Flanges
JIS B2220 Orifice Flanges
JIS B2220 Tube Flanges
ASME JIS B2220 Header Flanges
JIS B2220 Pressed Flanges
JIS B2220 Ring Type Joint Flanges
JIS B2220 Puddle Flanges
ASME JIS B2220 Ring Type Joint Flange
JIS B2220 Muffler Flanges
B2220 JIS Long weld Neck Flanges
JIS B2220 Pad Flanges
B2220 JIS RTJ Flanges
JIS B2220 Raised Face Flanges
JIS B2220 RTJ Flanges
JIS B2220 Stub End Flanges
JIS B2220 Raised Face Weld Neck Flanges
JIS B2220 Reducing Flanges
JIS RTJ Flanges
JIS B2220 Ring Flanges
BS4504 JIS B2220 RTJ Flanges
JIS B2220 Shower Rod Flanges
JIS B2220 Sae Flanges
JIS B2220 Screwed Flanges
JIS B2220 Clad Flanges
JIS B2220 Slip On Flanges
B2220 JIS Weld Neck Flange
JIS B2220 Socket Weld Flanges
JIS B2220 JIS WNRF Flange



Jis B2220 Flange Material, We are dedicated Flanges According To Jis B2220, Carbon Steel 5K JIS B2220 Flange suppliers in Mumbai, India

Special offer on:
Flange Schedule/Class
Pipe Size - Pipe Flanges
Flange Connection Type
Flange Material
Max. Pressure
ASME B16.5 Class 150
1/2"
FNPT
JIS
150 psi
ASME B16.5 Class 150
1/2"
Socket Weld
Forged JIS
275 psi
ASME B16.5 Class 150
1/2"
Welded
JIS
150 psi
ASME B16.5 Class 150
3/4"
FNPT
JIS
150 psi
ASME B16.5 Class 150
3/4"
Socket Weld
Forged JIS
275 psi
ASME B16.5 Class 150
1-1/4"
Socket Weld
Forged JIS
275 psi
ASME B16.5 Class 150
1-1/2"
Socket Weld
Forged JIS
275 psi
ASME B16.5 Class 150
2"
FNPT
JIS
150 psi
ASME B16.5 Class 150
2"
Socket Weld
Forged JIS
275 psi
ASME B16.5 Class 150
2-1/2"
Socket Weld
Forged JIS
275 psi
ASME B16.5 Class 150
3"
Socket Weld
Forged JIS
275 psi
ASME B16.5 Class 150
4"
FNPT
JIS
150 psi
ASME B16.5 Class 150
4"
Socket Weld
Forged JIS
275 psi
ASME B16.5 Class 300
1/2"
Slip On
Forged JIS
720 psi
ASME B16.5 Class 300
1/2"
Slip On
Forged JIS
720 psi
ASME B16.5 Class 300
1"
Slip On
Forged JIS
720 psi
ASME B16.5 Class 300
1"
Slip On
Forged JIS
720 psi
ASME B16.5 Class 300
1-1/4"
FNPT
Forged JIS
720 psi
ASME B16.5 Class 300
1-1/4"
Slip On
Forged JIS
720 psi
ASME B16.5 Class 300
1-1/2"
Slip On
Forged JIS
720 psi
ASME B16.5 Class 300
1-1/2"
Slip On
Forged JIS
720 psi
ASME B16.5 Class 300
2"
Slip On
Forged JIS
720 psi
ASME B16.5 Class 300
2"
Slip On
Forged JIS
720 psi
ASME B16.5 Class 300
2-1/2"
Slip On
Forged JIS
720 psi
ASME B16.5 Class 300
2-1/2"
Slip On
Forged JIS
720 psi
ASME B16.5 Class 300
3"
Slip On
Forged JIS
720 psi
ASME B16.5 Class 300
3"
Slip On
Forged JIS
720 psi
ASME B16.5 Class 300
4"
Slip On
Forged JIS
720 psi
ASME B16.5 Class 300
4"
Slip On
Forged JIS
720 psi



Jis B2220 Flanges Specification and Size, View Jis B2220 5k Flange Dimensions
ANSI B16.5 JIS B2220 Flanges, India’s Largest Manufacturer of Alloy Steel 5K KS B1503 Flanges, Stainless Steel Flange Jis 10k in mumbai, India



Buttweld Fittings
